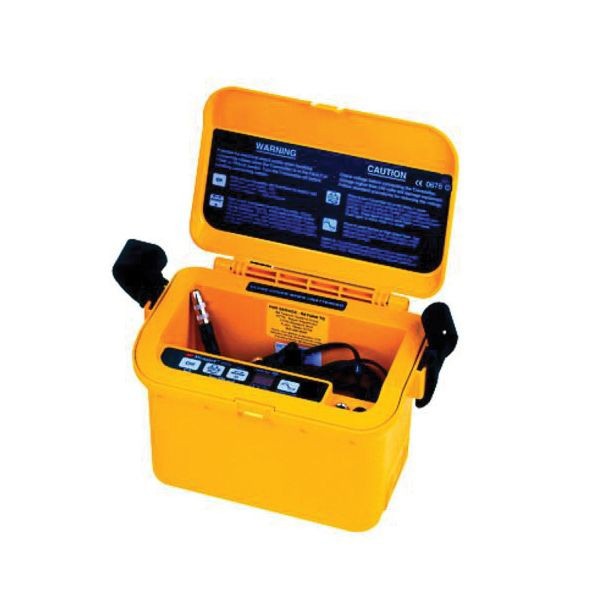

3M™ Dynatel™ 051115-30286 2250 Series Transmitter Only, Rechargeable Battery, -4 to 122 deg F Operating

Selected 71000293633M™ Dynatel™ 051115-30286 2250 Series Transmitter Only, Rechargeable Battery, -4 to 122 deg F Operating
71000293633M™ Dynatel™ 051115-30286 2250 Series Transmitter Only, Rechargeable Battery, -4 to 122 deg F Operating

Documents

Short Description

The 3M™ Dynatel™ locator 2250M iD is designed to find the path and estimated depth of buried cables and pipes and detect EMS markers.

Features

  • Four active trace frequencies which can be used individually or simultaneously to compensate for varying field conditions
  • The receiver incorporates passive power and auxiliary frequencies that do not require the use of the transmitter
  • Graphic display to distinguish between targeted cable and other cables in congested area
  • Accurate multi-antenna design for various user selected locating modes - directional peak, multi-directional null, plus a single antenna special peak mode for deep depths
  • Directional mode utilizes all peak antenna design for improved left/right guidance and accurate locates in challenging conditions
  • Compatibility with select GPS/GIS field mapping instruments for real time mapping of electronic markers or pipe and cable facilities
  • Locate, write and read information into the 3M™ iD Electronic Marker System
  • 12 W transmitter output

Specification

Operating Temperature
-4 to 122 deg F
Display Type
Graphic
EANUCC13
0051115302862
Includes
2273M 12 W Transmitter and Ground Rod
Power Source
Rechargeable Battery
Storage Temperature
-4 to 158 deg F
