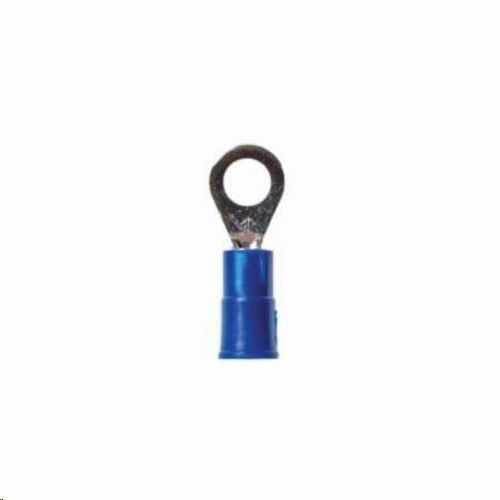

3M™ Scotchlok™ 051128-57438 Disconnect Insulated Standard Ring Terminal, 16 to 14 AWG Conductor, 0.73 in L, Butted Seam Barrel, Vinyl, Blue

Selected 3M™ Scotchlok™ 051128-57438 Disconnect Insulated Standard Ring Terminal, 16 to 14 AWG Conductor, 0.73 in L, Butted Seam Barrel, Vinyl, Blue
3M™ Scotchlok™ 051128-57438 Disconnect Insulated Standard Ring Terminal, 16 to 14 AWG Conductor, 0.73 in L, Butted Seam Barrel, Vinyl, Blue

Short Description

3M™ Scotchlok™ Color Coded Standard Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a vinyl insulated, butted seam barrel and withstands temperatures of -40 to 221 deg F (-40 to 105 deg C). Its durable brass construction offers good conductivity and a tin plated finish resists corrosion.

Features

  • Blue vinyl insulated, butted seam barrel with a funnel designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Made of durable brass for good conductivity and has corrosion resistant tin plating
  • Standard terminal style
  • Allows for quick and easy disconnect of wires
  • Mates with 0.11 in wide male tab

Specification

Material
Vinyl
Minimum Order Qty
1
Order Interval
1
Color
Blue
Conductor Size
16 to 14 AWG
Conductor Type
Copper
Finish
Tin Plated
Voltage Rating
600 VAC
Temperature Rating
-40 to 221 deg F
Tongue Type
Ring
Catalog ID
3-MMVU14-110DFK-A
Barrel Type
Butted Seam
Length
0.73 in
Tongue Size
0.11 in W x 0.02 in THK
Standard & Approvals
ARRA, RoHS 2011/65/EU Compliant, UL File No. E23438, CSA Certified
Specifications
0.18 in OD Insulation, Female Fastener Orientation
Barrel Size
1/4/2025 12:00:00 AM
