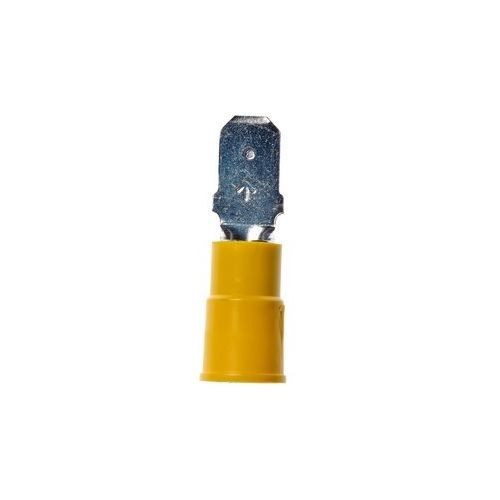

3M™ Scotchlok™ 051128-58721 Insulated Male Disconnect, 12 to 10 AWG Conductor, 1/4 in Tab, Butted Seam Barrel, Copper

Selected 051128-587213M™ Scotchlok™ 051128-58721 Insulated Male Disconnect, 12 to 10 AWG Conductor, 1/4 in Tab, Butted Seam Barrel, Copper
051128-587213M™ Scotchlok™ 051128-58721 Insulated Male Disconnect, 12 to 10 AWG Conductor, 1/4 in Tab, Butted Seam Barrel, Copper

Documents

Short Description

3M™ Scotchlok™ Standard Male Disconnect Terminal offers superior holding force while allowing for quick and easy disconnect

Features

  • Fully nylon insulated with insulation grip male disconnect
  • Butted-seam barrel with a funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
  • Male disconnect terminal offers excellent holding force
  • Mates with 0.25 in wide female tab
  • Allows for quick and easy disconnect of wires
  • 1000 V for signs, fixtures or luminaires
  • 50/Bottle, 500/Case

Specification

Material
Copper
Minimum Order Qty
50
Order Interval
50
Color
Yellow
Conductor Size
12 to 10 AWG
Finish
Tin Plated
Voltage Rating
600 V
Standard & Approvals
CSA Certified, RoHS Complaint, UL Listed
Tab Size
1/4 in
Temperature Rating
-40 to 221 deg F
Terminal Type
Crimp
Specifications
1/4 in Max insulation Dia, 0.15 in Barrel ID, 0.032 in T
Dimensions
1.05 in L
Catalog ID
3-MMNG10-250DMX
Barrel Type
Butted Seam
