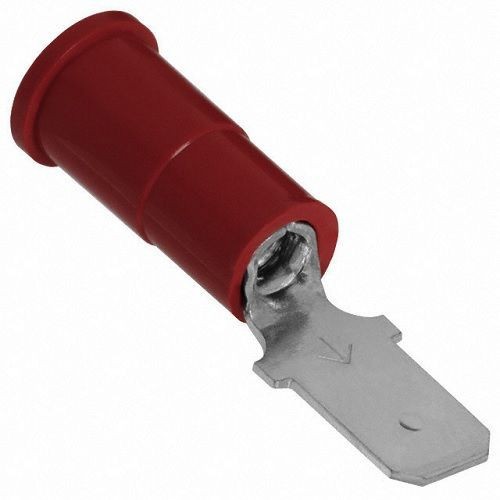

3M™ Scotchlok™ 051128-58782 Insulated Male Disconnect, 22 to 18 AWG Conductor, 1/4 in Tab, Butted Seam Barrel, Copper, Red
3M™ Scotchlok™ 051128-58782 Insulated Male Disconnect, 22 to 18 AWG Conductor, 1/4 in Tab, Butted Seam Barrel, Copper, Red
SKU: 3-MMVU18-250DMX
Manufacturer Part Number: 051128-58782
UPC: 051128587829
Documents
Short Description
Features
- Vinyl-insulated
- Butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve allows for easy insertion of wires
- Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
- Male disconnect terminal offers excellent holding force
- Mates with 0.25 in wide female tab
- Allows for quick and easy disconnect of wires
- 1000 V for signs, fixtures or luminaires
- 100/Bottle, 500/Case
Specification
| Material | Copper |
|---|---|
| Conductor Size | 22 to 18 AWG |
| Dimensions | 0.93 in L |
| Voltage Rating | 600 V |
| Barrel Type | Butted Seam |
| Color | Red |
| Finish | Tin Plated |
| Specifications | 0.145 Max insulation Dia, 0.065 in Barrel ID, 0.032 in T |
| Standard & Approvals | CSA Certified, RoHS Complaint, UL Listed |
| Tab Size | 1/4 in |
| Temperature Rating | -40 to 221 deg F |
| Terminal Type | Crimp |
