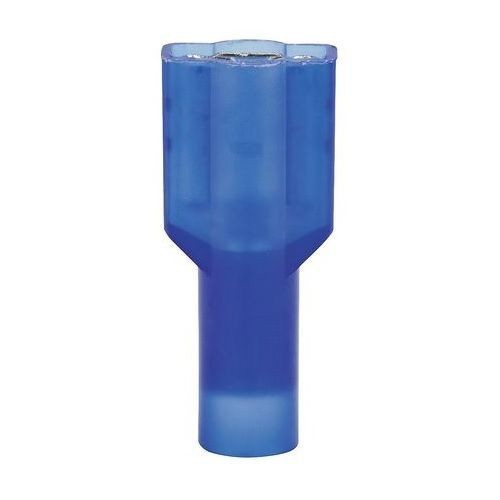

3M™ Scotchlok™ 051128-58800 Fully Insulated Female Disconnect, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab
3M™ Scotchlok™ 051128-58800 Fully Insulated Female Disconnect, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab
SKU: 3-MMNG14-250DFIX
Manufacturer Part Number: 051128-58800
UPC: 051128588000
Documents
Short Description
Features
- Nylon Insulated
- Blue nylon-insulated grip, butted-seam barrel with a funnel-designed, seamless brass sleeve offers easy insertion of wires
- Dents and rolled edges of this female disconnect terminal offer excellent holding force
- Allows for quick and easy disconnect of wires
- Made of durable brass for good conductivity and has corrosion-resistant tin plating
- Free hanging (in-line) mounting
- 100 terminals/bottle, 500 terminals/case
Specification
| Voltage Rating | 600/1000 VAC |
|---|---|
| Application | For Building Fixtures or Luminaires, Signs and Wire |
| Color | Blue |
| Finish | Tin Plated |
| Standard & Approvals | LR22190 CSA Certified, RoHS 2011/65/EU Compliant, UL E70512 Listed |
| Temperature Rating | -40 to 221 deg F |
| Terminal Type | Crimp |
| Tab Size | 0.25 in W x 0.032 in THK |
| Specifications | 0.145 in Dia Maximum Insulation, 0.08 in ID Barrel, 0.23 in Dia |
| Barrel Type | Butted Seam |
| Dimensions | 0.87 in L x 0.37 in W |
| Conductor Size | 16 to 14 AWG |
| Material | Brass |
