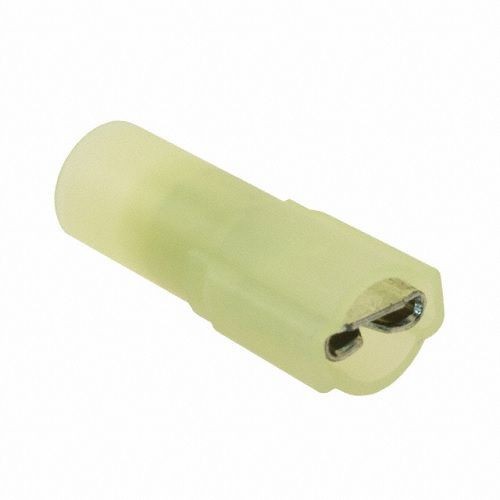

3M™ Scotchlok™ 051128-58812 Fully Insulated Female Disconnect, 12 to 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab

Selected 051128-588123M™ Scotchlok™ 051128-58812 Fully Insulated Female Disconnect, 12 to 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab
051128-588123M™ Scotchlok™ 051128-58812 Fully Insulated Female Disconnect, 12 to 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab

Short Description

3M™ Scotchlok™ Color-Coded Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect.

Features

  • Nylon Insulated
  • Insert wires easily and quickly with the butted-seam barrel
  • Strong dents and rolled edges hold the yellow terminal snug in place
  • Designed to put on and take off quickly
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Free hanging (in-line) mounting
  • 50 Terminals/Bottle, 500 Terminals/Case

Specification

Material
Brass
Voltage Rating
600/1000 VAC
Color
Yellow
Finish
Tin Plated
Standard & Approvals
CSA Certified, RoHS 2011/65/EU Compliant, UL Listed
Tab Size
0.25 in W x 0.032 in T
Temperature Rating
-40 to 221 deg F
Terminal Type
Crimp
Specifications
0.128 in ID Barrel, 0.99 in Dia
Barrel Type
Butted Seam
Conductor Size
12 to 10 AWG
