3M™ Scotchlok™ 051128-58837 Insulated Locking Fork Terminal, 16 to 14 AWG Conductor, 0.88 in L, Brazed Seam Barrel
3M™ Scotchlok™ 051128-58837 Insulated Locking Fork Terminal, 16 to 14 AWG Conductor, 0.88 in L, Brazed Seam Barrel
SKU: 3-MMV14-10FLX
Manufacturer Part Number: 051128-58837
UPC: 051128588376
Short Description
Features
- Blue vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
- Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- Spring-like tongue firmly fits around the stud
- Electrolytic copper construction offers good conductivity
- Abrasion and corrosion resistant, flared, vinyl-sleeve insulation ensures easy crimping
- Crimp termination
- Free hanging (In-line) mounting
- 0.35 in maximum lock width
- 500/Case, 100/Bottle

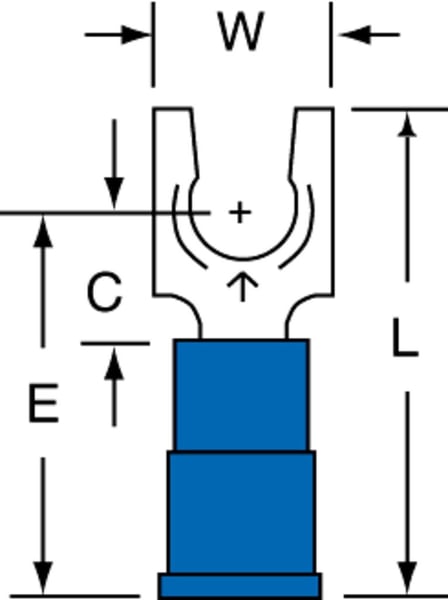

Specification
| Material | Copper |
|---|---|
| Barrel Size | 0.09 in ID x 1/4 in L |
| Barrel Type | Brazed Seam |
| Conductor Type | Stranded Copper |
| Voltage Rating | 600/1000 VAC |
| Standard & Approvals | LR22190 CSA Certified, RoHS 2011/65/EU Compliant, UL E23438 Listed |
| Temperature Rating | -40 to 221 deg F |
| Tongue Size | 0.32 in W x 0.03 in T |
| Stud Size | NO 10 |
| Specifications | 0.17 in Dia Maximum Insulation, 1/4 in Clearance |
| Application | For Building Wire, Fixtures or Luminaires and Signs |
| Finish | Electro-Tin Plated |
| Conductor Size | 16 to 14 AWG |
| Color | Blue |
| Catalog ID | 3-MMV14-10FLX |
| Order Interval | 100 |
| Minimum Order Qty | 100 |
| Length | 0.88 in |
| Tongue Type | Fork |
