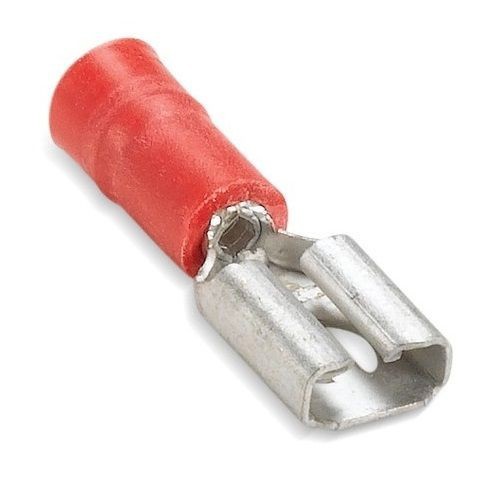

3M™ Scotchlok™ 051128-58935 Insulated Standard Female Disconnect, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab
3M™ Scotchlok™ 051128-58935 Insulated Standard Female Disconnect, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab
SKU: 3-MMVI18-250DFX
Manufacturer Part Number: 051128-58935
UPC: 051128589359
Short Description
Features
- Vinyl insulated
- Red vinyl-insulated, butted seam with an interlocking barrel and funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- Dents and rolled edges of this female disconnect terminal offer excellent holding force
- Allows for quick and easy disconnect of wires
- Made of durable brass for good conductivity and has corrosion-resistant tin plating
- Free hanging (in-line) mounting
- 100 terminals/bottle, 500 terminals/case
Specification
| Material | Brass |
|---|---|
| Conductor Size | 22 to 18 AWG |
| Dimensions | 0.83 in L |
| Voltage Rating | 600/1000 VAC |
| Application | For Building Fixtures or Luminaires, Signs and Wire |
| Barrel Type | Butted/Interlocking |
| Color | Red |
| Finish | Tin Plated |
| Specifications | 0.145 in Dia Maximum Insulation, 0.076 in ID x 1/4 in L Barrel |
| Standard & Approvals | LR22190 CSA Certified, RoHS 2011/65/EU Compliant, UL E70512 Listed |
| Tab Size | 0.25 in W x 0.032 in THK |
| Temperature Rating | -40 to 221 deg F |
| Terminal Type | Crimp |
