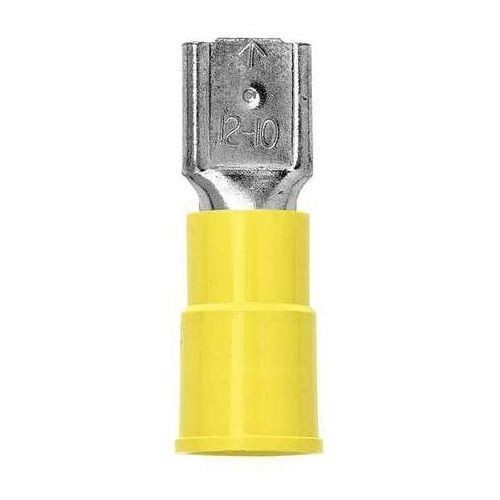

3M™ Scotchlok™ 051128-58936 Insulated Standard Female Disconnect, 12 to 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab

Selected 3M™ Scotchlok™ 051128-58936 Insulated Standard Female Disconnect, 12 to 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab
3M™ Scotchlok™ 051128-58936 Insulated Standard Female Disconnect, 12 to 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab

Short Description

3M™ Scotchlok™ Color-Coded Standard Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect.

Features

  • Vinyl insulated
  • Interlocking barrel has a funnel-designed, polyvinyl chloride sleeve for seamless wire insertion
  • Unique dents and rolled edges give you great holding power
  • Yellow terminal disconnects wires easily
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Free hanging (in-line) mounting
  • 50 Terminals/Bottle, 500 Terminals/Case

Specification

Material
Brass
Minimum Order Qty
1
Order Interval
1
Barrel Type
Butted/Interlocking
Color
Yellow
Conductor Size
12 to 10 AWG
Voltage Rating
600/1000 VAC
Finish
Tin Plated
Specifications
1/4 in Dia Maximum Insulation, 0.128 in ID x 1/4 in L Barrel
Standard & Approvals
LR22190 CSA Certified, RoHS 2011/65/EU Compliant, UL E70512 Listed
Tab Size
0.25 in W x 0.032 in THK
Temperature Rating
-40 to 221 deg F
Terminal Type
Crimp
Dimensions
0.95 in L
Catalog ID
3-MMVI10-250DFX
