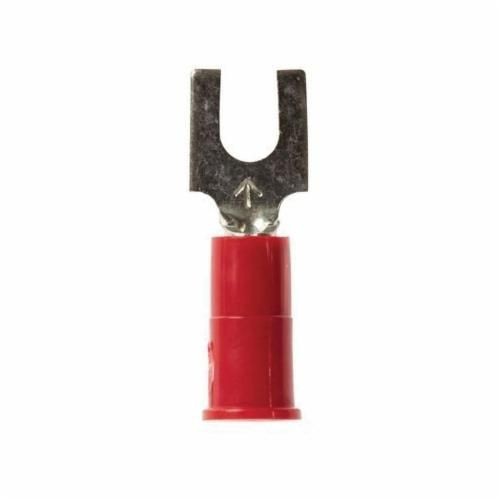

3M™ Highland™ 051128-59993 Insulated Block Fork Terminal, 22 - 18 AWG Conductor, 0.85 in L, Butted Seam Barrel, Copper
3M™ Highland™ 051128-59993 Insulated Block Fork Terminal, 22 - 18 AWG Conductor, 0.85 in L, Butted Seam Barrel, Copper
SKU: 3-MBFV18-10Q
Manufacturer Part Number: 051128-59993
UPC: 051128599938
Documents
Short Description
Features
- Red vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
- Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- Suitable for use in a terminal block
- Electrolytic copper construction offers good conductivity
- Abrasion and corrosion resistant, flared, vinyl-sleeve insulation ensures easy crimping
- Crimp termination
- Free hanging (In-line) mounting
- 25/Bag
Specification
| Length | 0.85 in |
|---|---|
| Material | Copper |
| Conductor Size | 22 to 18 AWG |
| Voltage Rating | 600 to 1000 VAC |
| Application | For Building Wire, Fixtures or Luminaires and Signs |
| Barrel Size | 0.07 in ID x 1/4 in L |
| Barrel Type | Butted Seam |
| Color | Red |
| Conductor Type | Stranded Copper |
| Finish | Electro-Tin Plated |
| Specifications | 0.145 in Dia Maximum Insulation, 1/4 in Clearance |
| Standard & Approvals | LR22190 CSA Certified, RoHS 2011/65/EU Compliant, UL E23438 Listed |
| Stud Size | NO 10 |
| Temperature Rating | -40 to 221 deg F |
| Tongue Size | 0.3 in W x 0.03 in T |
| Tongue Type | Fork |
