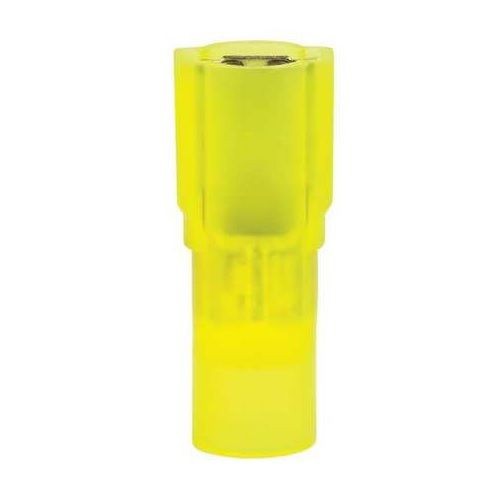

3M™ Highland™ 051128-59999 Fully Insulated Female Disconnect, 12 to 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab
3M™ Highland™ 051128-59999 Fully Insulated Female Disconnect, 12 to 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab
SKU: 3-MFDI10-250Q
Manufacturer Part Number: 051128-59999
UPC: 051128599990
Short Description
Features
- Nylon Insulated
- Yellow nylon-insulated, butted-seam barrel offers easy insertion of wires
- Dents and rolled edges of this female disconnect terminal offer excellent holding force
- Allows for quick and easy disconnect of wires
- Made of durable brass for good conductivity and has corrosion-resistant tin plating
- Free hanging (in-line) mounting
- 100 terminals/bag
Specification
| Material | Brass |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Color | Yellow |
| Voltage Rating | 600/1000 VAC |
| Finish | Tin Plated |
| Specifications | 1/4 in Dia Maximum Insulation, 0.128 in ID x 1/4 in L Barrel |
| Standard & Approvals | LR22190 CSA Certified, RoHS 2011/65/EU Compliant, UL Listed |
| Temperature Rating | -40 to 221 deg F |
| Dimensions | 0.99 in L |
| Conductor Size | 12 to 10 AWG |
| Catalog ID | 3-MFDI10-250Q |
| Barrel Type | Butted Seam |
| Terminal Type | Crimp |
| Tab Size | 0.25 in W x 0.032 in THK |
