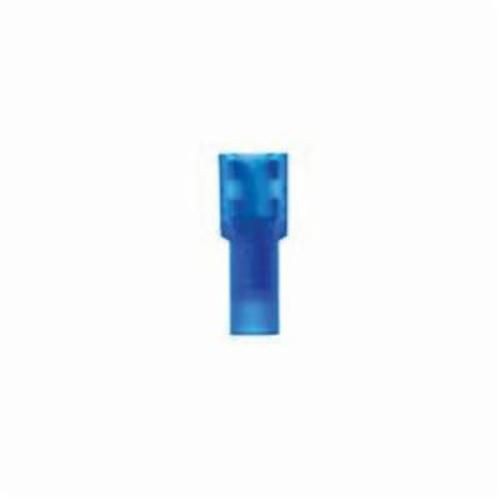

3M™ Highland™ 051128-60001 Fully Insulated Disconnect Terminal, 16 to 14 AWG Conductor, 1/4 in W Tab, Butted Seam Barrel
3M™ Highland™ 051128-60001 Fully Insulated Disconnect Terminal, 16 to 14 AWG Conductor, 1/4 in W Tab, Butted Seam Barrel
SKU: 3-MFDI14-250Q
Manufacturer Part Number: 051128-60001
UPC: 051128600016
Documents
Short Description
Features
- Blue nylon-insulated, butted-seam barrel offers easy insertion of wires
- Dents and rolled edges of this female disconnect terminal offer excellent holding force
- Allows for quick and easy disconnect of wires
- Mates with 0.25 in wide male tab
- Accommodates wire sizes 16 to 14 AWG
- Made of durable brass for good conductivity and has corrosion-resistant tin plating
- Rated 600 V for building wire and 1000 V for signs, fixtures or luminaires
- 3M™ Highland™ color-coded female disconnect terminal attaches to the mating part with a tongue that slips over the male tab
- The butted-seam barrel of this terminal provides electrical contact after crimping
- The flared nylon sleeve is abrasion-resistant with a stepped design to ensure mistake-proof crimping
Specification
| Material | Nylon/Brass |
|---|---|
| Conductor Size | 16 to 14 AWG |
| Dimensions | 0.87 in L x 0.37 in W x 0.032 in H |
| Voltage Rating | 600 VAC |
| Barrel Type | Butted Seam |
| Color | Blue |
| Conductor Type | Solid |
| Finish | Tin Plated |
| Specifications | 0.145 in Max Insulation OD, 0.23 in L Barrel, 1/4 in W Pad |
| Standard & Approvals | UL Listed, CSA File No. LR22190 Certified, RoHS 2011/65/EU Compliant¿ |
| Tab Size | 1/4 in W |
| Temperature Rating | -40 to 221 deg F |
| Terminal Type | Female |
