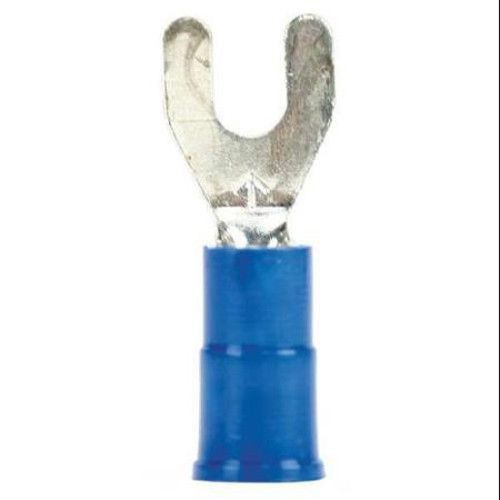

3M™ Highland™ 051128-60012 Insulated Standard Fork Terminal, 16 to 14 AWG Conductor, 0.9 in L, Butted Seam Barrel, Blue
3M™ Highland™ 051128-60012 Insulated Standard Fork Terminal, 16 to 14 AWG Conductor, 0.9 in L, Butted Seam Barrel, Blue
SKU: 3-MFV14-6Q
Manufacturer Part Number: 051128-60012
UPC: 051128600122
Documents
Short Description
Features
- Blue vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
- Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- Wider-tongue design for use on free-standing studs
- Electrolytic copper construction offers good conductivity
- Abrasion and corrosion resistant, flared, vinyl-sleeve insulation ensures easy crimping
- Crimp termination
- Free hanging (In-line) mounting
- 25/Bag
Specification
| Length | 0.9 in |
|---|---|
| Material | Copper |
| Conductor Size | 16 to 14 AWG |
| Application | For Building Wire, Fixtures or Luminaires and Signs |
| Barrel Size | 0.09 in ID x 1/4 in L |
| Color | Blue |
| Conductor Type | Stranded Copper |
| Standard & Approvals | LR22190 CSA Certified, RoHS 2011/65/EU Compliant, UL E23438 Listed |
| Temperature Rating | -40 to 221 deg F |
| Tongue Type | Fork |
| Tongue Size | 0.34 in W x 0.03 in T |
| Stud Size | NO 6 |
| Specifications | 0.17 in Dia Maximum Insulation, 0.29 in Clearance |
| Finish | Electro-Tin Plated |
| Barrel Type | Butted Seam |
| Voltage Rating | 600 to 1000 VAC |
