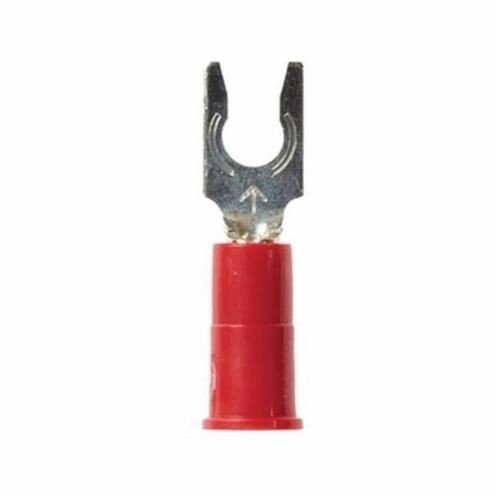

3M™ Highland™ 051128-60021 Insulated Locking Fork Terminal, 22 to 18 AWG Conductor, 0.88 in L, Butted Seam Barrel, Red

Selected LFV18-8Q3M™ Highland™ 051128-60021 Insulated Locking Fork Terminal, 22 to 18 AWG Conductor, 0.88 in L, Butted Seam Barrel, Red
LFV18-8Q3M™ Highland™ 051128-60021 Insulated Locking Fork Terminal, 22 to 18 AWG Conductor, 0.88 in L, Butted Seam Barrel, Red

Documents

Short Description

3M™ Highland™ Color-Coded Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud.

Features

  • Red vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Spring-like tongue firmly fits around the stud
  • Electrolytic copper construction offers good conductivity
  • Abrasion and corrosion resistant, flared, vinyl-sleeve insulation ensures easy crimping
  • Crimp termination
  • Free hanging (In-line) mounting
  • 0.34 in maximum lock width
  • 25/Bag

Specification

Material
Copper
Conductor Size
22 to 18 AWG
Voltage Rating
600 to 1000 VAC
Barrel Type
Butted Seam
Color
Red
Conductor Type
Stranded Copper
Finish
Electro-Tin Plated
Specifications
0.145 in Dia Maximum Insulation, 1/4 in Clearance
Standard & Approvals
LR22190 CSA Certified, RoHS 2011/65/EU Compliant, UL E23438 Listed
Stud Size
NO 8
Temperature Rating
-40 to 221 deg F
Tongue Size
0.3 in W x 0.03 in T
Tongue Type
Fork
Barrel Size
0.07 in ID x 1/4 in L
Length
0.88 in
