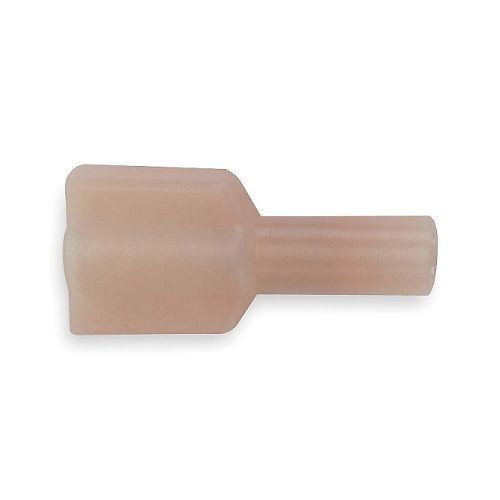

3M™ Highland™ 051128-60026 Insulated Male Disconnect, 22 to 18 AWG Conductor, 1/4 in Tab, Butted Seam Barrel, Copper, Red
3M™ Highland™ 051128-60026 Insulated Male Disconnect, 22 to 18 AWG Conductor, 1/4 in Tab, Butted Seam Barrel, Copper, Red
SKU: 3-MMTI18-250Q
Manufacturer Part Number: 051128-60026
UPC: 051128600269
Short Description
Features
- Fully nylon insulated
- Butted-seam barrel offers easy insertion of wires
- Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
- Male disconnect terminal offers excellent holding force
- Mates with 0.25 in wide female tab
- Allows for quick and easy disconnect of wires
- 1000 V for signs, fixtures or luminaires
- 25/Bag
Specification
| Material | Copper |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Color | Red |
| Conductor Size | 22 to 18 AWG |
| Finish | Tin Plated |
| Voltage Rating | 600/1000 VAC |
| Temperature Rating | -40 to 221 deg F |
| Dimensions | 0.95 in L x 0.44 in W |
| Catalog ID | 3-MMTI18-250Q |
| Barrel Type | Butted Seam |
| Terminal Type | Crimp |
| Tab Size | 1/4 in |
| Standard & Approvals | CSA Certified, RoHS Complaint, UL Listed |
| Specifications | 0.032 in T |
