3M™ Highland™ 051128-60027 Insulated Male Disconnect, 12 to 10 AWG Conductor, 1/4 in Tab, Butted Seam Barrel, Copper
3M™ Highland™ 051128-60027 Insulated Male Disconnect, 12 to 10 AWG Conductor, 1/4 in Tab, Butted Seam Barrel, Copper
SKU: 3-MMTV10-250Q
Manufacturer Part Number: 051128-60027
UPC: 051128600276
Documents
Short Description
Features
- Vinyl-insulated
- Butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve allows for easy insertion of wires
- Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
- Male disconnect terminal offers excellent holding force
- Mates with 0.25 in wide female tab
- Allows for quick and easy disconnect of wires
- 1000 V for signs, fixtures or luminaires
- 25/Bag
Specification
| Material | Copper |
|---|---|
| Conductor Size | 12 to 10 AWG |
| Voltage Rating | 600/1000 VAC |
| Color | Yellow |
| Finish | Tin Plated |
| Tab Size | 1/4 in |
| Temperature Rating | -40 to 221 deg F |
| Terminal Type | Crimp |
| Standard & Approvals | CSA Certified, RoHS Complaint, UL Listed |
| Specifications | 0.032 in T |
| Barrel Type | Butted Seam |

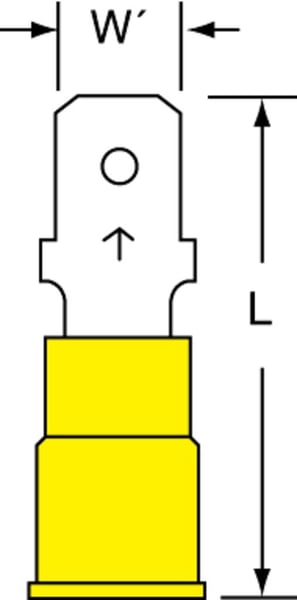

| Dimensions | 1.05 in L |
