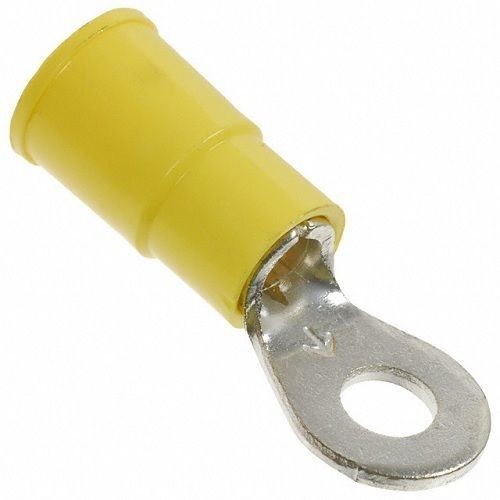

3M™ Highland™ 051128-60032 Insulated Standard Ring Terminal, 12 to 10 AWG Conductor, 1.03 in L, Butted Seam Barrel
3M™ Highland™ 051128-60032 Insulated Standard Ring Terminal, 12 to 10 AWG Conductor, 1.03 in L, Butted Seam Barrel
SKU: 3-MRV10-10Q
Manufacturer Part Number: 051128-60032
UPC: 051128600320
Documents
Short Description
Features
- Yellow vinyl insulated, butted seam barrel ensures a secure fit and offers reliable performance
- Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- Standard-style ring tongue fits around the stud
- Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
- Crimp termination
- Free hanging (in-line) mounting
- 25 Terminals/Bag
Specification
| Length | 1.03 in |
|---|---|
| Material | Copper |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Barrel Size | 0.135 in ID x 0.25 in L |
| Barrel Type | Butted Seam |
| Catalog ID | 3-MRV10-10Q |
| Color | Yellow |
| Conductor Size | 12 to 10 AWG |
| Finish | Tin Plated |
| Voltage Rating | 600/1000 VAC |
| Application | For Building Fixtures or Luminaires, Wires and Signs |
| Specifications | 1/4 in Dia Maximum Insulation, 0.29 in Clearance |
| Standard & Approvals | LR22190 CSA Certified, RoHS 2011/65/EU Compliant, UL E23438 Listed |
| Stud Size | #10 |
| Temperature Rating | -40 to 221 deg F |
| Tongue Size | 0.38 in W x 0.04 in T |
| Tongue Type | Ring |
