3M™ 051128-60688 3C-BOK 3-Conductor Cold Shrink Breakout Boot Kit, For Use With Type G Cables, Copper Tape Shield Cables, Armored Cables and Tray Cables without Armor
3M™ 051128-60688 3C-BOK 3-Conductor Cold Shrink Breakout Boot Kit, For Use With Type G Cables, Copper Tape Shield Cables, Armored Cables and Tray Cables without Armor
SKU: 3-M3C-BOK-5
Manufacturer Part Number: 051128-60688
UPC: 051128606889
Short Description
Features
- Designed to allow the use of 3M™ single conductor cable accessories on 3-core conductor cables
- Accommodates 1/0 AWG to 1000 kcmil conductor sizes for 5 to 35 kV rated voltage
- All components needed are included in the kit
- Customizable kits lugs, mounting brackets, rejacketing can all be adjusted per your needs
- Hydrophobic, track and erosion resistant silicone provides long term performance and high reliability
- Long term reliability even in contaminated areas
- Fewer components to make installation easy and fast
- Shorter installed length which makes it suitable for confined areas
- No need for a torch/heat source
- No need for a hot permit
- No special tools needed
- Easy unwinding pull core that requires less pull strength than a 1-piece tube
Specification
| Standard & Approvals | ARRA Compliant, Buy American Act Compliant, RoHS Compliant, IEEE 48, Cenelec 0278, IEC 502/GB |
|---|---|
| Suitable For Use With | Type G Cables, Copper Tape Shield Cables, Armored Cables and Tray Cables without Armor |
| Specifications | 1.18 to 1.52 in OD Insulation, 4-1/2 in OD Maximum Cable, 5 to 35 kV |

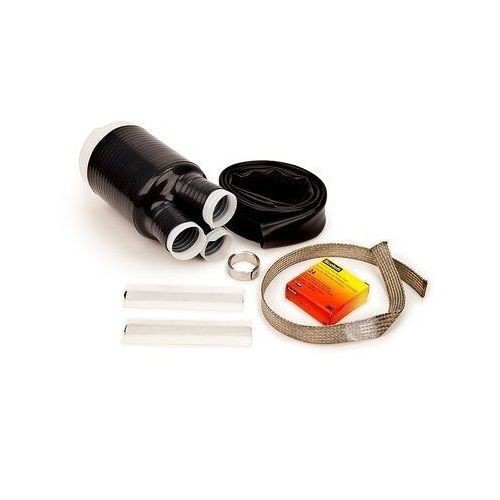

| Includes | (3) Silicone Rubber Phase Rejacketing Sleeves, (1) Large Constant Force Spring, (1) Long Tail Tinned Copper Ground Braid with Solder Block, (3) Scotch® 2230 Mastic Strips, (1) Scotch® Super 33+™ Vinyl Electrical Tape (1) Scotch® 24 Electrical Shielding Tape and (1) Instruction Sheet |
| Application | Outdoor and Indoor Applications |
