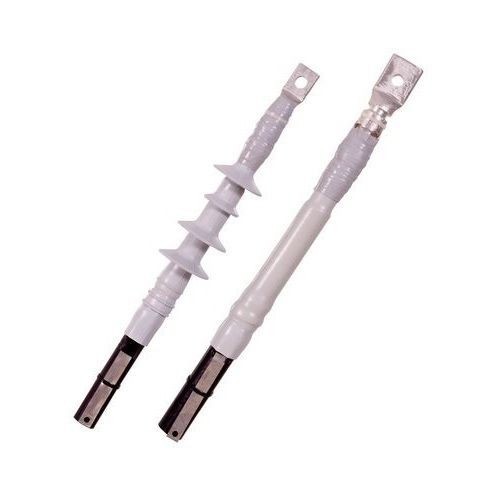

3M™ 5620K Cold Shrink QT-II Termination Kit, 3, Silicone Rubber, 0.56 - 0.87 in OD Cable Insulation, Black

Selected 051128-608913M™ 5620K Cold Shrink QT-II Termination Kit, 3, Silicone Rubber, 0.56 - 0.87 in OD Cable Insulation, Black
051128-608913M™ 5620K Cold Shrink QT-II Termination Kit, 3, Silicone Rubber, 0.56 - 0.87 in OD Cable Insulation, Black

Documents

Short Description

3M™ Cold Shrink QT-II 5620K Series Termination Kit includes three 1-piece, non-skirted single-phase terminations. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric-constant material and silicone rubber insulation allows the termination to withstand voltages of 5 to 15kV

Features

  • Provides a void-free seal to tape shield, wire shield and UniShield® power cables
  • High dielectric-constant material regulates the distribution of electric field stress
  • Non-tracking, molded, silicone rubber insulation offers durability
  • Includes three 1 piece, single phase, cold shrink terminations
  • UniShield®, wire shield, tape shield shielding type
  • Conductor size by voltage (5 kV, 100%) 2/0 AWG - 250 kcmil, (5 kV, 133%) 1/0 - 4/0 AWG, (8 kV, 100%) 1/0 - 4/0 AWG, (8 kV, 133%) 1 - 3/0 AWG, (15 kV, 100%) 4 - 2/0 AWG, (15 kV, 133%) 4 - 1 AWG
  • 3 terminals

Specification

Material
Silicone Rubber
Number of Pieces
3
Minimum Order Qty
1
Order Interval
1
Color
Black
Suitable For Use With
Conductor Size Range (5 kV, 100%) 2/0 AWG - 250 kcmil, (5 kV, 133%) 1/0 - 4/0 AWG, (8 kV, 100%) 1/0 - 4/0 AWG, (8 kV, 133%) 1 - 3/0 AWG, (15 kV, 100%) 4 - 2/0 AWG, (15 kV, 133%) 4 - 1 AWG
Specifications
110 kV BIL-Rated, 0.56 - 0.87 in OD Cable Insulation, 11 in Maximum Installed Length
Catalog ID
3-M5623K
Standard & Approvals
IEEE 48 Class 1 Approved
