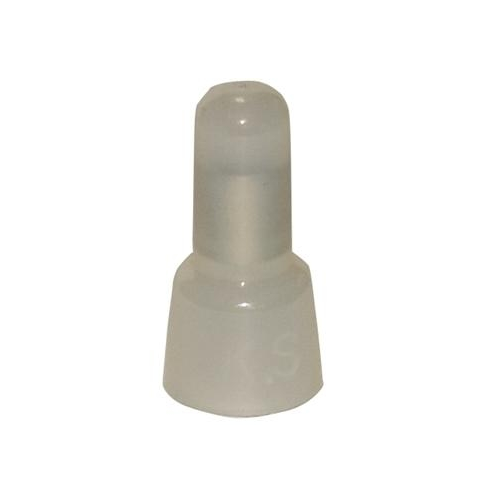

3M™ Scotchlok™ 051138-98044 Crimp Sleeve Closed End Connector, 18 to 10 AWG Conductor, 1 in L, Nylon

Selected 051138-980443M™ Scotchlok™ 051138-98044 Crimp Sleeve Closed End Connector, 18 to 10 AWG Conductor, 1 in L, Nylon
051138-980443M™ Scotchlok™ 051138-98044 Crimp Sleeve Closed End Connector, 18 to 10 AWG Conductor, 1 in L, Nylon

Documents

Short Description

3M™ Scotchlok™ color-coded Closed-End connector is an electrical crimp sleeve connector with a copper insert that allows fast work of splicing copper conductors. The connector is nylon-insulated, and is 600V-rated for building wire and 1000V-rated for signs, fixtures or luminaires. It withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C).

Features

  • Nylon-insulated barrel ensures a secure fit and offers reliable performance
  • A smooth, flared end provides quick wire insertion
  • Built-in wire stop for correct positioning
  • Copper insert offers good conductivity
  • 600 V rated for building wire and 1000 V for signs, fixtures or luminaires
  • Copper terminal
  • 3M™ Scotchlok™ Closed-End connector is color-coded for quick and easy identification of the wire size required
  • It allows for quick wire insertion with a smooth, flared entry
  • A copper insert offers good conductivity

Specification

Length
1 in
Material
Nylon
Minimum Order Qty
50
Order Interval
50
Catalog ID
3-MS-31-ABOXED
Conductor Size
18 to 10 AWG
Conductor Type
Copper
Voltage Rating
600 VAC
Application
For used in light fixtures, appliances and other electrical OEM applications
Standard & Approvals
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
Temperature Rating
-40 to 105 deg C
