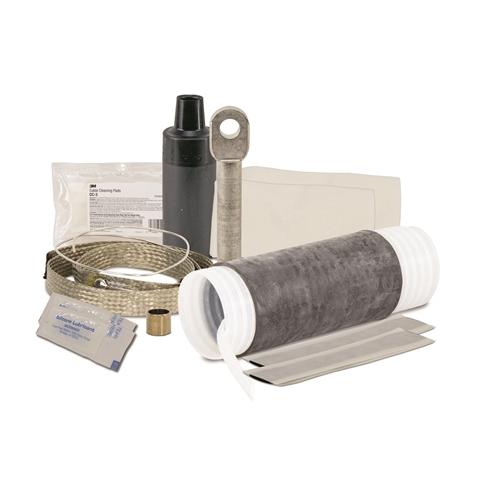

3M™ 5815 Dead Break T-Bodies Modular Splice Adapter Kit, 9 Pieces, EPDM Rubber, 175, 220 mil Stranded

Selected 054007-045793M™ 5815 Dead Break T-Bodies Modular Splice Adapter Kit, 9 Pieces, EPDM Rubber, 175, 220 mil Stranded
054007-045793M™ 5815 Dead Break T-Bodies Modular Splice Adapter Kit, 9 Pieces, EPDM Rubber, 175, 220 mil Stranded

Documents

Short Description

The 3M™ 5815 Series Modular Splicing System is a fully shielded 600 Amp separable connector system which meets the requirements of ANSI/IEEE Standard 386 - "Separable Insulated Connector Systems." These modular kits are available for splicing, dead-ending and connecting to dead front apparatus such as transformers, switches and switchgear equipped with 600 Amp bushings. The system has the capability for future modification by simply adding or removing modular components. By combining kits, the system can accommodate 3-way, 4-way, parallel feed, etc. connections in various tap splicing configurations.

Features

  • 1.33 insulation
  • Modular design allows custom tailoring for various splicing functions and configurations, such as multiple taps, sectionalizing, dead ending, adding-on
  • Bolt-together components allows dead-break disconnecting and reuse of the connecting components
  • Molded conductive outer jacket - provides for a fully shielded dead-front connection which meets the requirements of IEEE standard 592 - exposed semi-conducting shields on high voltage cable joints and separable insulated connectors
  • Kit packaging designed for industrial use, the kits simplify the selection, ordering and stocking of appropriate system components
  • Shield adapter kits - cold shrink design for simple shield rejacketing. Kits provide all of the components necessary for adapting the separable connector to specific cable sizes and shielding types of common industrial power cables
  • Voltage test point - the dead-end plug provides a high impedance test point for safely checking the de-energized status of the circuit
  • Can splice one cable
  • Jacketed concentric neutral, tape shield, unishield, wire shield cable type
  • Aluminum compression connector type
  • Cold shrink tube insulating material
  • 0.91 - 1.065 in insulation dia

Specification

Minimum Order Qty
1
Order Interval
1
Standard & Approvals
ANSI/IEEE Standard 386
Specifications
600 A, 15 kV, 4/0 AWG(220 mil) Stranded, 250 kcmil (220 mil) Compact/Solid
Application
For Jacketed Concentric Neutral Shielded Power Cables, UniShield®, Tape Shield and Wire Shield
Finish
Epoxy
Catalog ID
3-M5815-B26
Number of Pieces
9
Material
EPDM Rubber
