3M™ Scotchcast™ 72-N Nn-Re-Enterable Resin Splice Kit, 1000 V, 5/8 - 1-1/2 in OD Dia Cable, 22 AWG Conductor, Resin

Selected 054007-106273M™ Scotchcast™ 72-N Nn-Re-Enterable Resin Splice Kit, 1000 V, 5/8 - 1-1/2 in OD Dia Cable, 22 AWG Conductor, Resin

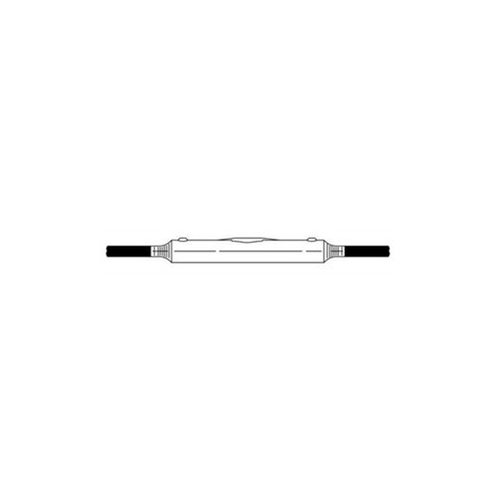

054007-106273M™ Scotchcast™ 72-N Nn-Re-Enterable Resin Splice Kit, 1000 V, 5/8 - 1-1/2 in OD Dia Cable, 22 AWG Conductor, Resin

Documents

Short Description

3M™ Scotchcast™ 72-N Series Inline Splice Kit is a 1 kV-rated, rigid body splice designed to join signal and control cables. It fits shielded or unshielded constructions of plastic or rubber-jacketed cables. It is perfect for inline splicing of shielded or unshielded cables, underground systems, joining of cable reel ends, direct burial applications, repair of cable failures and dig-ins.

Features

  • Rigid body splice for joining signal and control cables
  • Compound has low viscosity for fast, complete filling of splice and low exotherm which will not damage plastic insulated cable
  • Convenient closed mixing pouch container permits clean, easy compound handling
  • The polypropylene mold has a built-in spacer web that automatically offers cable centering and compound coverage
  • No special tools required, can use normal hand tools only and non re-enterable
  • Kits provide all materials needed to re-insulate, reconnect shield and rejacket one splice
  • Fits shielded construction of plastic or rubber jacketed cables
  • Designed for in-line splicing of underground systems, joining of cable reel ends, direct burial applications and repair of cable failures
  • Tape 23 helps in sealing collars or splice body ends, and the jumper wire with clips offers solderless shield continuity on shielded cables
  • 600 PSI tensile strength
  • 150% elongation
  • 20 AWG, 10 AWG, 12 AWG, 16 AWG, 22 AWG, 18 AWG, 14 AWG conductor sizes
  • 10/Case

Specification

Insulation Size
5/8 - 1-1/2 in OD
Material
Resin
Minimum Order Qty
1
Order Interval
1
Cable Diameter
5/8 - 1-1/2 in OD
Cable Type
Shielded/Control
Catalog ID
3-M72-N3
Conductor Size
22 AWG
Connector Type
In-Line
Dimensions
2-1/2 in Dia
Voltage Rating
1 kV
Splice Length
15.438 in
Temperature Rating
90 to 130 deg C
Standard & Approvals
RoHS 2011/65/EU Compliant
Includes
(1) 2-Part Translucent Mold Body, Electrical Insulating and Sealing Compound 2104, (2) Pour Spouts, Scotch® Rubber Splicing Tape 23, (1) Non-Conductive Abrasive Cloth, ( 1) Jumper Wire and Instructions
