3M™ 054007-12271 Motor Lead Splice Kit, 5 to 8 kV, 8 to 4 AWG, 10 to 4 AWG Conductor, 7 to 8 in L Splice

Selected 53233M™ 5323 5300 Motor Lead Pigtail Splice, 5/8 kV, 2 AWG to 250 kcmil Conductor, 9 to 10 in L Splice, EPDM Rubber
53233M™ 5323 5300 Motor Lead Pigtail Splice, 5/8 kV, 2 AWG to 250 kcmil Conductor, 9 to 10 in L Splice, EPDM Rubber

Documents

Short Description

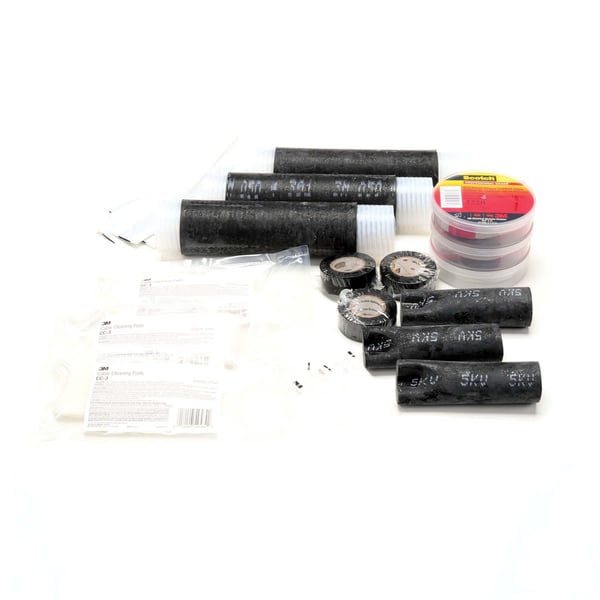

3M™ 5300 series motor lead pigtail splice kit contains 3- each of pigtail lug covers, cold shrink tubes, silicone grease tubes, solvent cleaning cloths, splicing tape 130C and more. This shielded and non-shielded splice kit features a slip on splice cover that is made of a durable EPDM rubber while mastic strips are used for moisture seal applications. It includes high dielectric constant stress control for reducing the size and electrical stress. This kit is perfect for splicing polyethylene/cross linked cable, ethylene propylene rubber cable, copper conductors and more. RoHS 2011/65/EU compliant.

Specification

Cable Type
Shielded
Color
Black
Standard & Approvals
OSHA 29 CFR 1910.1200, RoHS 2011/65/EU
Temperature Rating
90 deg C
Splice Length
7 to 8 in
Includes
(3) Pigtail Lug Covers, (3) Cold Shrink Tubes, (3) Silicone Grease Tubes, (3) Solvent Cleaning Cloths, (3) 130C Splicing Tape and More
Voltage Rating
5 to 8 kV
Conductor Size
8 to 4 AWG, 10 to 4 AWG
Insulation Size
0.3 to 0.51 in OD
