3M™ 5300 Pigtail Motor Lead Splice Kit, 5/8 kVAC, 4 to 1/0 AWG Conductor, 8 to 9 in L Splice, EPDM
3M™ 5300 Pigtail Motor Lead Splice Kit, 5/8 kVAC, 4 to 1/0 AWG Conductor, 8 to 9 in L Splice, EPDM
SKU: 3-M5322
Manufacturer Part Number: 054007-12272
UPC: 054007122722
Short Description
Features
- Fast and simple installation
- No torches or heat source required
- No special tools required to install splice
- Thick walls to resist puncture and abrasion damage
- High dielectric constant stress control included with 5/8 kV kits for shielded feeder cables for minimizing size and electrical stress
- Easy re-entry, can be used on cables with a rated operating temperature of 90 deg C and an emergency overload rating of 130 deg C, to splice (insulate and seal) motor lead connections for 1000 V and less cables sized 16 AWG to 500 Kcmil
- Suitable for use with 30000 Series copper compression lugs or other UL Listed copper lugs
- 365 V/MIL dielectric strength
- 750% elongation
- 1400 PSI tensile strength
- 1 in maximum bolt length
- Polyethylene cable
Specification
| Insulation Size | 0.43 to 0.65 in OD |
|---|---|
| Material | EPDM |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | 3-M5322 |
| Color | Black |
| Conductor Size | 4 to 1/0 AWG |
| Connector Type | Pigtail |
| Dimensions | 9 in L |
| Temperature Rating | 90 deg C |
| Cable Type | Tape Shield/UniShield®/Wire Shield |
| Standard & Approvals | CSA Certified, RoHS 2011/65/EU Compliant |
| Splice Length | 8 to 9 in |

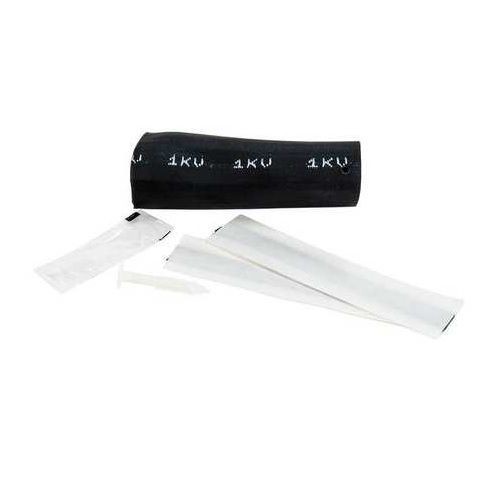

| Includes | (3) Pigtail Lug Covers, (3) Cold Shrink tubes, (9) Mastic sealing strips, (3) Rolls Scotch® Stress Control Tape 2200, (3) Bags of solvent cleaning cloths, (3) Tubes of silicone grease, (3) Rolls Scotch® Linerless Rubber Splicing Tape 130C, (3) Instruction sheets |
| Voltage Rating | 5/8 kV |
