3M™ 054007-15066 Glass Cloth Tape, 66 ft L x 1/2 in W x 7 mil THK, Eatable Rubber Resin, White

Selected 3M™ 054007-15074 Glass Cloth Tape, 66 ft L x 3/4 in W x 7 mil Thk, White
3M™ 054007-15074 Glass Cloth Tape, 66 ft L x 3/4 in W x 7 mil Thk, White

Documents

Short Description

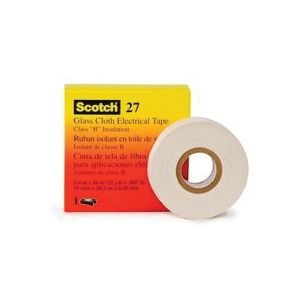

3M™ Glass Cloth Electrical Tape 27 is a 7-mil woven insulating tape with pressure-sensitive rubber thermosetting adhesive. This tape is designed to operate in 600 VAC dry applications requiring high mechanical strength and resistance to high temperatures. The adhesive is specially designed and prepared to provide corrosion protection.

Features

  • Insulating motor lead connectors, switchers and controls for furnaces and ovens
  • Securing systems requiring high mechanical strength and resistance to high temperatures
  • Insulation in coil wrapping outer wrap
  • Provides heat stable insulation for hot spot applications
  • Tape is designed to operate in 600 VAC dry applications requiring high mechanical strength and resistance to high temperatures
  • The adhesive is specially designed and prepared to provide corrosion protection
  • 7-mil woven insulating glass cloth tape with pressure-sensitive rubber thermosetting adhesive
  • Designed to operate in 600 VAC dry applications requiring high mechanical strength and resistance to high temperatures
  • Adhesive is specially designed and prepared to provide corrosion protection
  • Edge-tear resistant, conformable, and abrasion-resistant
  • For use as a coil cover, anchor, banding and core, layer and crossover insulation
  • Printable

Specification

Material
Eatable Rubber Resin
Voltage Rating
600 VAC
Color
White
Standard & Approvals
RoHS Compliant
Length
66 ft
Thickness
7 mil
Temperature Rating
0 - 150 deg C
Di-Electric Strength
3000 V
Core
3 in
Backing Material
Glass Cloth
Adhesive Material
Rubber
Adhesion Strength
30 in-oz
