3M™ 054007-15668 Cold Shrink Mine and Portable Splice Kit, 5 to 8 kV, 1.8 to 2.4 in Dia Cable, 1/0 to 4/0 AWG Conductor

Selected 054007-156683M™ 054007-15668 Cold Shrink Mine and Portable Splice Kit, 5 to 8 kV, 1.8 to 2.4 in Dia Cable, 1/0 to 4/0 AWG Conductor
054007-156683M™ 054007-15668 Cold Shrink Mine and Portable Splice Kit, 5 to 8 kV, 1.8 to 2.4 in Dia Cable, 1/0 to 4/0 AWG Conductor

Short Description

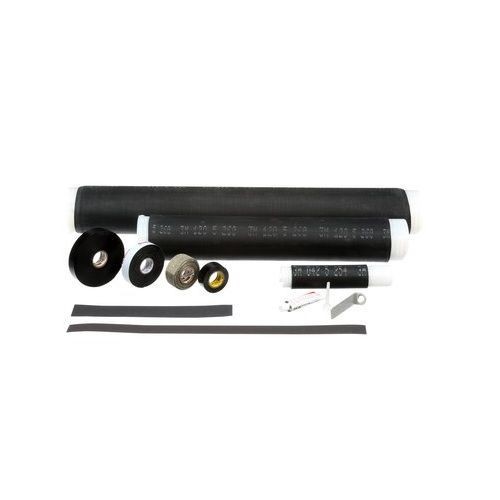

3M™ Cold Shrink Mine and Portable Splice Kit is designed for splicing SHD-GC, MP-GC and MP cables that are rated at 5/8 kV. The kit includes 3 cold shrink connector insulating tubes, Scotch® 24 electrical shielding tape, cold shrink filler tube, jacket tube, Scotch 13 electrical semi-conducting tape, Super 33+ vinyl electrical tape and Scotch 130C linerless rubber splicing tape.

Features

  • Perfect for splicing non-shielded cables
  • Rated for 5 to 8 kV applications
  • Accommodates wire size of 1 to 4/0 AWG
  • 25 to 50 sq-mm wire gauge

Specification

Material
EPDM Rubber
Number of Conductors
3
Conductor Size
1/0 to 4/0 AWG
Voltage Rating
5 to 8 kV
Cable Diameter
1.8 to 2.4 in
Cable Type
Non-Shielded
Color
Black
Includes
Scotch® (24) Electrical shielding tape, Cold Shrink Filler Tube, Jacket Tube, Scotch and (13) Electrical Semi-Conducting Tape
Standard & Approvals
ABS Certified, RoHS 2011/65/EU Compliant
