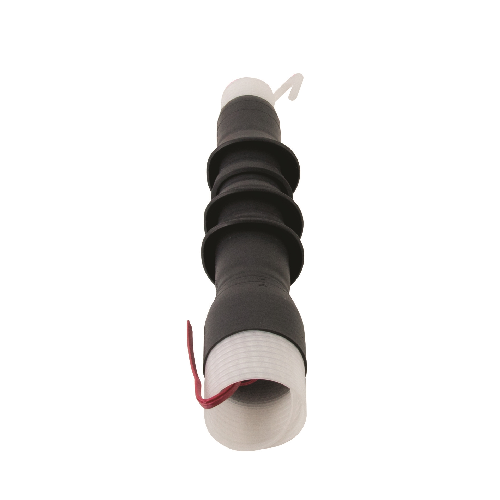

3M™ 7640-T Cold Shrink QT-III Termination Kit, 1, Silicone Rubber, Black

Selected 054007-417643M™ 7640-T Cold Shrink QT-III Termination Kit, 1, Silicone Rubber, Black
054007-417643M™ 7640-T Cold Shrink QT-III Termination Kit, 1, Silicone Rubber, Black

Short Description

3M™ Cold Shrink QT-III 7640-T & 7650-T Series Termination Kit includes a non-skirted, 1-piece termination. It ensures a pliable, tight seal for jacketed concentric neutral and concentric neutral power cables. The conjunction of high dielectric-constant material and silicone rubber insulation allows the termination to withstand voltages of 5 - 35 kV

Features

  • Provides a void-free seal to jacketed concentric neutral and concentric neutral power cables
  • High dielectric-constant material regulates the distribution of electric field stress
  • Non-tracking, molded, silicone rubber insulation offers durability
  • Includes 3 non-skirted, 1 piece, 3 phase, cold shrink terminations
  • Jacketed concentric neutral (JCN), concentric neutral (CN) shielding type
  • Conductor size by voltage (5 kV) 4/0 AWG - 400 kcmil, (8 kV) 3/0 AWG - 300 kcmil, (15 kV) 2 - 4/0 AWG
  • 1 terminal

Specification

Material
Silicone Rubber
Number of Pieces
1
Minimum Order Qty
1
Order Interval
1
Catalog ID
3-M7642-T-110
Color
Black
Specifications
110 kV BIL-Rated, 0.64 - 1.08 in OD Cable Insulation, 12 in Maximum Installed Length
Standard & Approvals
IEEE 48 Class 1 Approved
Suitable For Use With
Conductor Size Range (5 kV) 4/0 AWG - 400 kcmil, (8 kV) 3/0 AWG - 300 kcmil, (15 kV) 2 - 4/0 AWG
