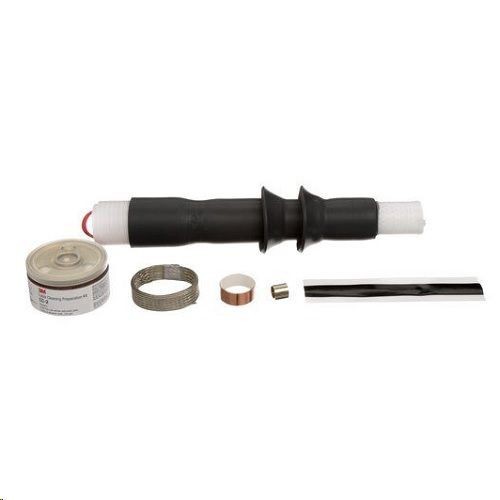

3M™ 7620-S Cold Shrink QT-III Termination Kit, 3, Outdoor & Weather-Exposed, Silicone Rubber, Black
3M™ 7620-S Cold Shrink QT-III Termination Kit, 3, Outdoor & Weather-Exposed, Silicone Rubber, Black
SKU: 3-M7621-S-2
Manufacturer Part Number: 054007-42169
UPC: 054007421696
Documents
Short Description
Features
- Provides a void-free seal to tape shield, wire shield and UniShield® power cables
- High dielectric-constant material regulates the distribution of electric field stress
- Silicone rubber insulation offers durability and reduces leakage currents in damp conditions
- Includes three 2 skirt, 1 piece, 3 phase, cold shrink terminations
- UniShield®, wire shield, tape shield shielding type
- Conductor size by voltage (5 kV) 2 - 3/0 AWG, (8 kV) 4 - 2/0 AWG
- 1 terminal
Specification
| Material | Silicone Rubber |
|---|---|
| Number of Pieces | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Color | Black |
| Application | For Outdoor and Weather-Exposed |
| Specifications | 95 kV BIL-Rated, 0.44 - 0.89 in OD Cable Insulation, 10-1/2 in Maximum Installed Length |
| Suitable For Use With | Conductor Size Range (5 kV) 2 - 3/0 AWG, (8 kV) 4 - 2/0 AWG |
| Standard & Approvals | IEEE 48 Class 1 Approved |
| Catalog ID | 3-M7621-S-2 |
