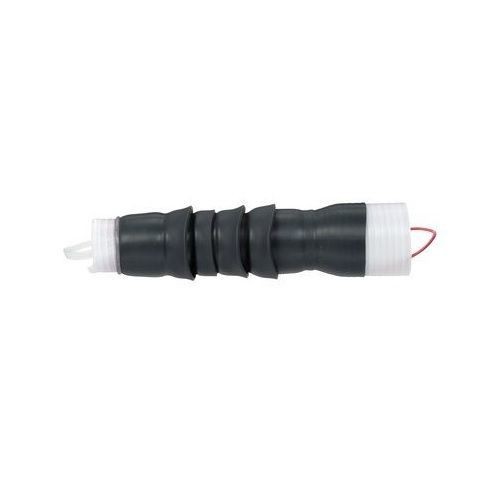

3M™ 054007-42208 7650-S Cold Shrink QT-III Termination Kit, 1 Pieces, For Use With Single Core Tape Shield, Wire Shield and UniShield® Cable, Silicon Rubber, Black

Selected 3M™ 054007-42208 7650-S Cold Shrink QT-III Termination Kit, 1 Pieces, For Use With Single Core Tape Shield, Wire Shield and UniShield® Cable, Silicon Rubber, Black
3M™ 054007-42208 7650-S Cold Shrink QT-III Termination Kit, 1 Pieces, For Use With Single Core Tape Shield, Wire Shield and UniShield® Cable, Silicon Rubber, Black

Short Description

3M™ Cold Shrink QT-III 7640-S, 7650-S and 7660-S Series Termination Kit includes a 1-piece, skirted termination. It ensures a pliable, tight seal for jacketed concentric neutral and concentric neutral power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages of 5 to 35 kV.

Features

  • Provides a void free seal to jacketed concentric neutral and concentric neutral power cables
  • High dielectric constant material regulates the distribution of electric field stress
  • Silicone rubber insulation offers durability and reduces leakage currents in damp conditions
  • Jacketed concentric neutral (JCN), concentric neutral (CN) shielding type
  • Conductor size by voltage (5 kV) 700 to 1500 kcmil, (8 kV) 600 to 1250 kcmil, (15 kV) 500 to 1000 kcmil, (25/28 kV) 250 to 800 kcmil
  • 1 terminal
  • QL2-A-4/0-600, QL2-A-350-750 compatible lug

Specification

Material
Silicon Rubber
Number of Pieces
1
Minimum Order Qty
1
Order Interval
1
Catalog ID
3-M7655-S-4
Color
Black
Specifications
4-Skirts, 5 kV, 8 kV, 15 kV, 25/28 kV, 150 kV BIL-Rated, 1.05 to 1.8 in OD Cable Insulation 12-1/4 in Max Installed Length
Standard & Approvals
ARRA, Buy American Act, RoHS Compliant, IEEE 48 Class 1
Suitable For Use With
Single Core Tape Shield, Wire Shield and UniShield® Cable
