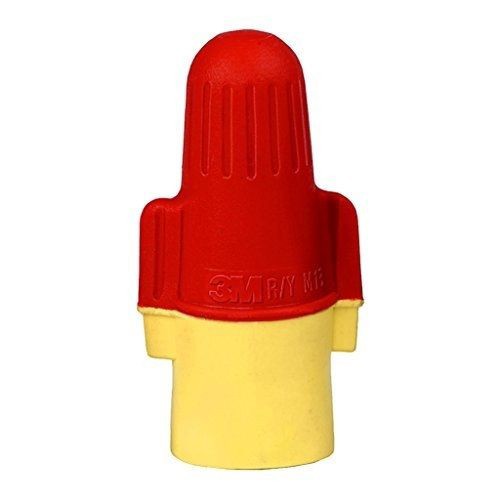

3M™ Performance Plus R/Y+ Flame-Retardant Twist-On Wire Connector, Rounded Wing Shell, Live-Action/Square Wire Spring, 100 count

Selected 3 MR Y+BOX
3 MR Y+BOX

Documents

Short Description

3M™ Performance Plus Wire Connectors handle the work of eight standard connectors, R/Y+ replaces both red and yellow wing style connectors

Features

  • Polypropylene and thermoplastic elastomer insulation
  • New design allows easier installation, smooth, fast and easy-on the hands
  • Flexible skirts provide safety provides protection against potential shock situations
  • Simplifies selection of the right connector for a wide range of wiring jobs, there’s also less inventory to manage, and a better chance you'll have the connector you need to do every job
  • Corrosion resistant coating
  • A better bite for a better connection, wires feed into the connector more easily, improving the security of the connection and increasing the level of pull-out
  • 1000 V for signs, fixtures or luminaires
  • (2) 18 AWG, (2) 8 AWG, (5) 12 AWG wire combinations
  • 100/Box

Specification

Material
Steel Spring
Minimum Order Qty
100
Order Interval
100
Catalog ID
3-MR/Y+POUCH
Color
Red/Yellow
Voltage Rating
600 VAC
Shell Style
Rounded Wing
Standard & Approvals
C22.2 #188-MI983 File No LR15503 CSA Certified, CE Certified, IEC, RoHS Compliant, UL 486C UL File No E23438 Listed
Temperature Rating
221 deg F
Spring Type
Live-Action/Square Wire
