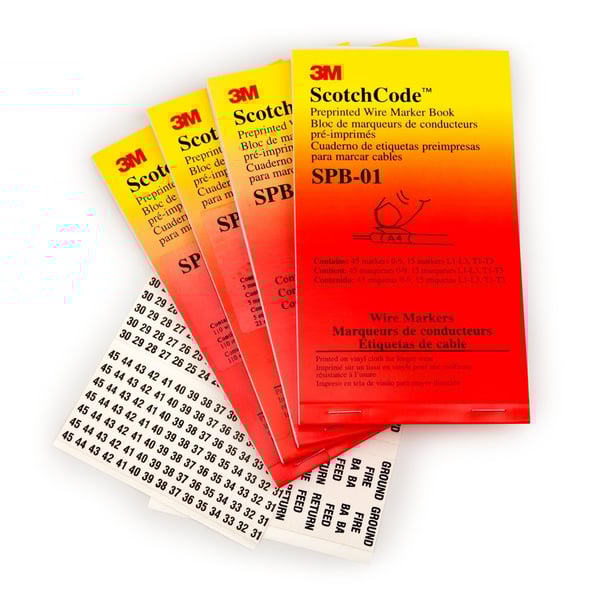

3M™ Scotchcode™ SPB Pre-Printed Wire Marker Book, 1.37 in L x 0.22 in W, 0 - 9, L1, L2, L3, T1, T2, T3 Legend
3M™ Scotchcode™ SPB Pre-Printed Wire Marker Book, 1.37 in L x 0.22 in W, 0 - 9, L1, L2, L3, T1, T2, T3 Legend
SKU: 3-MSPB-01
Manufacturer Part Number: 054007-49951
UPC: 054007499510
Short Description
Features
- 60 labels per book
- Individual character markers are perforated in the center to reduce thickness on smaller gauge wires and include a single character marker for the terminal strip
- Marks load centers and alarm systems
- Withstands a wide temperature range of 32 to 150 deg F
- Marker will be made of a vinyl impregnated cloth with a top coat and a natural rubber adhesive
- 10 mil thickness
- 20 - 30 oz/in width adhesion to steel, 8 - 14 oz/in width adhesion to backing
- 42 lb/inch width tensile strength
- Marker has pre-printed numbers and symbols
- 0.47 in maximum wire diameter
Specification
| Legend/Background Color | Black on White |
|---|---|
| Length | 1.37 in |
| Material | Vinyl Impregnated Cloth |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Standard & Approvals | Pass 2011/65/EU RoHS Complaint |
| Includes | 45 each of 0 to 9 numeric markers, 15 each of L1, L2, L3 and T1, T2, T3 markers |
| Application | For Marking Electrical Wires and Terminal Strips |
| Catalog ID | 3-MSPB-01 |
| Legend | 0 - 9, L1, L2, L3, T1, T2, T3 |
