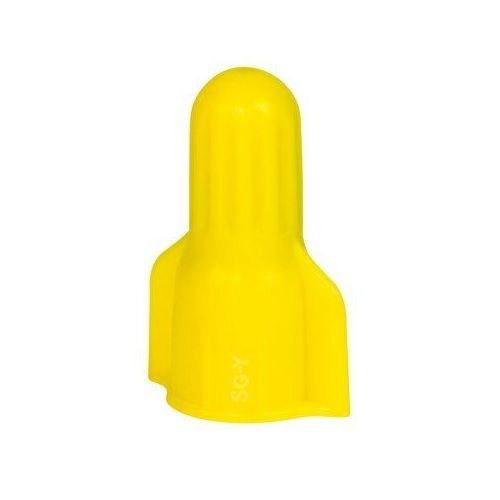

3M™ 076308-92604 Secure Grip Twist On Wire Connector, Winged Shell, 18 to 10 AWG Copper Wire, Polypropylene/Spring Steel

Selected 3M™ 076308-92604 Secure Grip Twist On Wire Connector, Winged Shell, 18 to 10 AWG Copper Wire, Polypropylene/Spring Steel
3M™ 076308-92604 Secure Grip Twist On Wire Connector, Winged Shell, 18 to 10 AWG Copper Wire, Polypropylene/Spring Steel

Short Description

3M™ secure grip wire connectors are designed to give you dependable performance for a wide range of residential and commercial wiring jobs. An internal, insulated spring delivers a powerful grip for secure, solid connections that are made to last. The slip-resistant ridges and straight wing design make installation fast, simple and easy on fingers. 3M™ secure grip wire connectors are available in a variety of colors/wire ranges. SG Y (yellow) 2 #18 3 #12, SG T (tan) 3 #18 3 #10, SG G (green grounding) 3 #14 3 #10 (solid only), SG R (red) 3 #14 2 #8, SG B (blue) 6 #14 2 #6. UL listed.

Features

  • Robust spring design for high performance holding power
  • Accommodates a wire range of 1, 5 to 2, 5 mm 2 solid or stranded

Specification

Voltage Rating
600/1000 VAC
Color
Yellow
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, RoHS Compliant, REACH Compliant, UL 486C, UL E23438
Temperature Rating
221 deg F
Material
Polypropylene/Spring Steel
Shell Style
Winged
