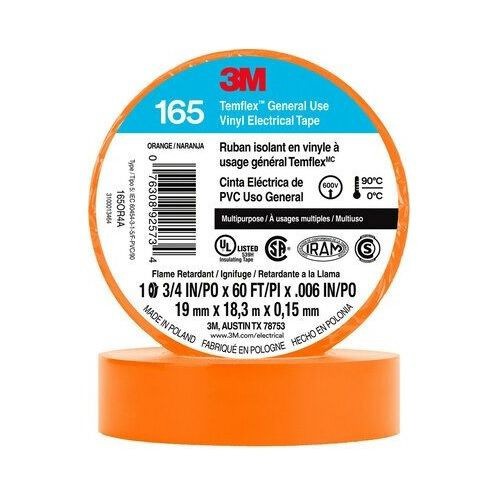

3M™ Temflex™ 165OR4A Vinyl Electrical Tape 165, Orange, 3/4 in x 60 ft (19 mm x 18 m)

Selected 3M™ Temflex™ 165OR4A Vinyl Electrical Tape 165, Orange, 3/4 in x 60 ft (19 mm x 18 m)
3M™ Temflex™ 165OR4A Vinyl Electrical Tape 165, Orange, 3/4 in x 60 ft (19 mm x 18 m)

Short Description

3M™ Temflex™ Vinyl Electrical Tape 165 is a 6-mil thick, multi-purpose vinyl insulating tape available in 10 colors. It is designed to perform in ambient temperatures up to 194°F (90°C). The tape is conformable for cold weather application down to 32°F (0°C). It has excellent resistance to abrasion, moisture, alkalies, acid, copper corrosion and varying weather conditions. The combination of an elastic PVC backing and pressure-sensitive rubber-based adhesive provides electrical and mechanical protection with minimum bulk.

Features

  • Resists abrasion, moisture, alkalis, solvents and acids
  • Flame-retardant and inhibits the corrosion of electrical conductors
  • Made of durable PVC
  • Compatible with rubber and synthetic splicing compounds
  • Withstands a temperature range of 32 to 194 °F (0 to 90 °C)
  • UL Listed, CSA and VDE Certified

Specification

Maximum Operating Temperature
194 deg F
Thickness
6 mil
Application
Insulation
Length
60 ft
Color
Orange
Backing Material
Polyvinyl Chloride PVC
Adhesive Material
Rubber
