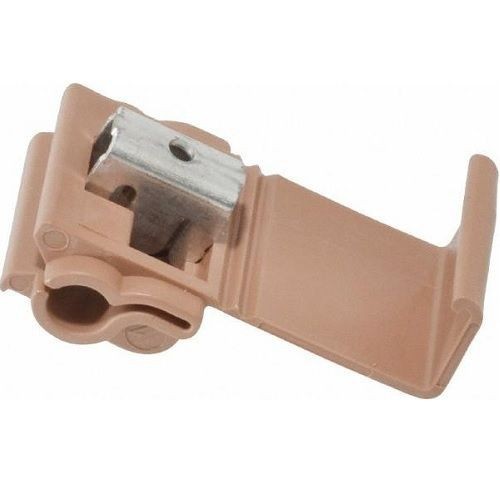

3M™ Scotchlok™ 567 Run/Tap Insulation Displacement Connector, 18 - 14 AWG (Tap)/ 12 - 10 AWG (Run)
3M™ Scotchlok™ 567 Run/Tap Insulation Displacement Connector, 18 - 14 AWG (Tap)/ 12 - 10 AWG (Run)
SKU: 3-M567-BOX
Manufacturer Part Number: 567-BOX
UPC: 054007148876
Documents
Features
- Self-stripping and flame retardant
- Recommended installation tools - crimping tool no E-9BM, 9 in linemans pliers
- Dual element connection
- Maximum recommended current for general purpose is 18 AWG - 7 A, 16 AWG - 10 A, 14 AWG-15 A, 12 AWG-20 A, 10 AWG-25 A
- Brass U-contact
- 18 - 14 AWG (tap)/ 12 - 10 AWG (run)
Specification
| Insulation Type | Fully Insulated |
|---|---|
| Material | Flame Retardant Polypropylene |
| Dimensions | 0.03 in THK |
| Voltage Rating | 600 VAC |
| Application | For Electrically Connect A (Tap) Wire End to A Through (Run) Wire and Insulate the Connection |
| Color | Brown |
| Finish | Tin Plated |
| Specifications | 0.19 in (Run), 0.145 in (Tap) Maximum Insulation O.D |
| Standard & Approvals | C22.2 No 0. 188-MI983, LR15503, LR32411 CSA Certified, RoHS Compliant, UL 486C, UL E23438 Listed |
| Temperature Rating | 105 deg C |
