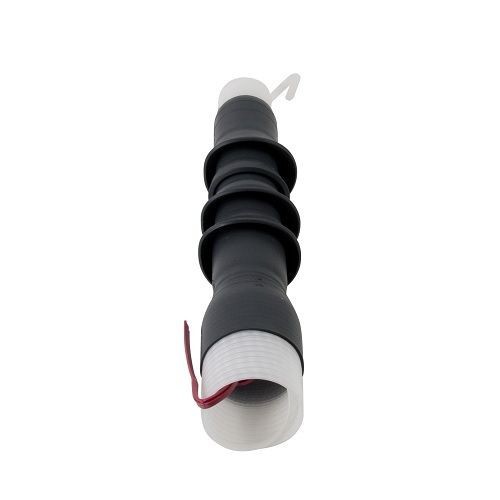

3M™ 7620-S Cold Shrink QT-III Termination Kit, 3, Solid Dielectric Insulations, Silicone Rubber, Black

Selected 3M™ 7620-S Cold Shrink QT-III Termination Kit, 3, Solid Dielectric Insulations, Silicone Rubber, Black
3M™ 7620-S Cold Shrink QT-III Termination Kit, 3, Solid Dielectric Insulations, Silicone Rubber, Black

Documents

Short Description

3M™ Cold Shrink QT-III 7620-S, 7680-S & 7690-S Series Termination Kit includes three 1-piece, 3-phase, skirted terminations. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric-constant material and silicone rubber insulation allows the termination to withstand voltages of 5 - 35 kV

Features

  • Provides a void-free seal to tape shield, wire shield and UniShield® power cables
  • High dielectric-constant material regulates the distribution of electric field stress
  • Silicone rubber insulation offers durability and reduces leakage currents in damp conditions
  • Includes three 2 skirt, 1 piece, 3 phase, cold shrink terminations
  • UniShield®, wire shield, tape shield shielding type
  • Conductor size by voltage (5 kV) 4/0 AWG - 400 kcmil, (8 kV) 3/0 AWG - 300 kcmil, (15 kV) 2 - 4/0 AWG
  • 3 terminals

Specification

Material
Silicone Rubber
Number of Pieces
3
Minimum Order Qty
1
Order Interval
1
Color
Black
Application
For Solid Dielectric Insulations Such as Polyethylene, XLPE and EPR, Tape Shielded, Wire Shielded and UniShield Cables
Specifications
110 kV BIL-Rated, 0.64 - 1.08 in OD Cable Insulation, 9.8 in Maximum Installed Length
Standard & Approvals
IEEE 48 Class 1 Approved
Suitable For Use With
Conductor Size Range (5 kV) 4/0 AWG - 400 kcmil, (8 kV) 3/0 AWG - 300 kcmil, (15 kV) 2 - 4/0 AWG
Catalog ID
3-M7622-S-2
