3M™ 8454 8450 Cold Shrink Cable Accessory Sealing Kit, For Use With Power Cable, Black

Selected 70001324773M™ 8454 8450 Cold Shrink Cable Accessory Sealing Kit, For Use With Power Cable, Black
70001324773M™ 8454 8450 Cold Shrink Cable Accessory Sealing Kit, For Use With Power Cable, Black

Short Description

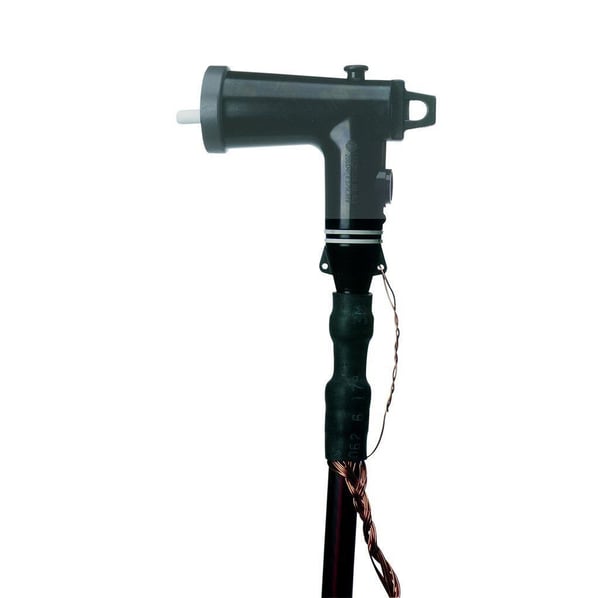

3M™ cable accessory sealing kits provide a reliable means of sealing the jacket end of power cables where elbows or other cable accessories are installed. The seal is accomplished with the use of a tubular rubber sleeve and rubber base mastic sealing strips. The mastic strips seal around cable neutral wires or other ground attachment leads. The rubber sleeve is factory expanded and assembled onto a removable core. As supplied in this pre stretched condition the tube is ready for field installation. With mastic in place, the expanded tube is positioned over-the cable jacket end and the inner supporting core is removed. Removing the core allows the sealing tube to shrink and form a water-resistant seal. The sealing tube is made of EPDM rubber that contains no chlorides or sulfur. Both the sealing tube and mastic are compatible with commonly used power cable jacket and semi-conductive materials. To extend the useful life of this product in applications which are continuously exposed to high levels of ultra-violet radiation, overwrap with scotch super 33+ vinyl tape or Scotch® 70 silicone Tape.

Features

  • (15 kV) 750 to 1500 kcmil (380 to 725 sq-mm), (25 kV) 600 to 1250 kcmil (325 to 625 sq-mm) cable size by voltage
  • 1 cold shrink sealing tube
  • 1500, 750, 500, 450, 1000, 800, 700, 600, 400, 1250, 900 and 350 kcmil conductor
  • 1.6 in Dia seal
  • 6 mastic sealing strips
  • Jacketed concentric neutral shielding
  • Accommodates a wide-range of cable
  • No torch or heat required
  • Seals tight, retains its resiliency and pressure even after prolonged years of aging and exposure
  • Thick walled to resist puncture and damage
  • Water-resistant
  • Compatible with cable jackets and semi-conducting insulation shields
  • Resists fungus
  • Resists acids and alkalis
  • Resists ozone and ultraviolet light

Specification

Color
Black
Suitable For Use With
Power Cable
Includes
Cold Shrink Sealing Tube and Mastic Sealing Strip
Dimensions
3.57 in Dia
