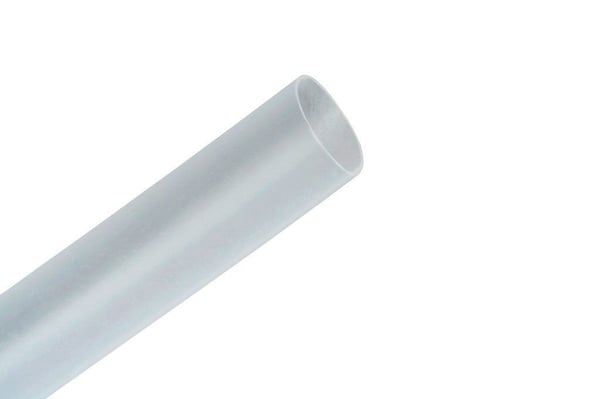

3M™ FP0.250CR6"P Non-Corrosive Split-Resistant Heat Shrink Tubing, 1/4 in ID Expanded, 1/8 in ID Recovered, 0.025 in THK Wall Recovered, 6 in L, Flexible Polyolefin, Clear

Selected FP0.250CR6"P3M™ FP0.250CR6"P Non-Corrosive Split-Resistant Heat Shrink Tubing, 1/4 in ID Expanded, 1/8 in ID Recovered, 0.025 in THK Wall Recovered, 6 in L, Flexible Polyolefin, Clear
FP0.250CR6"P3M™ FP0.250CR6"P Non-Corrosive Split-Resistant Heat Shrink Tubing, 1/4 in ID Expanded, 1/8 in ID Recovered, 0.025 in THK Wall Recovered, 6 in L, Flexible Polyolefin, Clear

Documents

Short Description

3M™ single wall tubing is the right choice for electrical insulation in many industrial and manufactured products. It's also dependable as a light weight wire harness, wire marking, wire bundling, component packaging and fire-resistant cover.

Features

  • Designed to withstand elevated temperatures to 572 deg F for short periods of time
  • Offers an outstanding balance of electrical, physical and chemical properties for a wide variety of industrial and military applications
  • Mechanically tough, easily marked and resists cold flow
  • 900 V/mil dielectric strength
  • 2400 psi tensile strength
  • 400% elongation
  • 10 years shelf life

Specification

Inner Diameter Expanded
1/4 in
Inner Diameter Recovered
1/8 in
Length
6 in
Material
Flexible Polyolefin
Voltage Rating
600 VAC
Application
Construction and Industrial Applications
Color
Clear
Shrink Ratio
12/31/1899 2:01:00 AM
Shrink Temperature
212 Deg F
Standard & Approvals
RoHS Compliant, UL Listed, CSA Certified
Temperature Rating
-67 to 275 deg F
