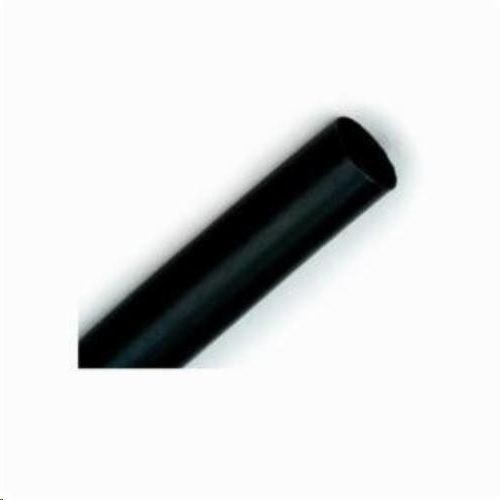

3M™ 051128-59888 Flame Retardant General Purpose Non-Corrosive Heat Shrink Tubing, 3/32 in ID Expanded, 3/64 in ID Recovered, 0.02 in THK Wall Recovered, 6 in L, Polyolefin

Selected 3 MFP301 3 32 6 BLACK 20
3 MFP301 3 32 6 BLACK 20

Documents

Short Description

3M™ Heat Shrink Tubing FP-301 is color-coded for quick and easy identification of the wire. This split-resistant tubing is used as shrink-fit, electrical insulation over cable splices or terminations. The high-expansion-ratio tubing is mechanically tough, easily markable and resists cold flow. It is perfect for lightweight wire-harness covering, fire-resistant covering, wire marking, wire bundling and component packaging. It withstands temperatures of -67 to 275 deg F (-55 to 135 deg C).

Features

  • Flexible polyolefin construction that offers moisture-seal protection
  • Balances electrical, physical and chemical properties for various industrial and military applications
  • Provides flame retardant insulation for 600 V rated application
  • 2400 psi tensile strength
  • 900 V/mil dielectric strength
  • 400% elongation
  • 1.3 (Opaque) and 0.93 (Clear) specific gravity
  • 10 years shelf life

Specification

Inner Diameter Expanded
3/32 in
Inner Diameter Recovered
3/64 in
Length
6 in
Material
Polyolefin
Voltage Rating
600 VAC
Color
Black
Shrink Ratio
0.084027777777777701
Shrink Temperature
212 Deg F
Standard & Approvals
UL Listed, SAE-AMS-DTL-23053/5, Class 1, 2, AMS-3636, AMS-3637, CSA Certified, RoHS 2011/65/EU
Temperature Rating
-67 to 275 deg F
