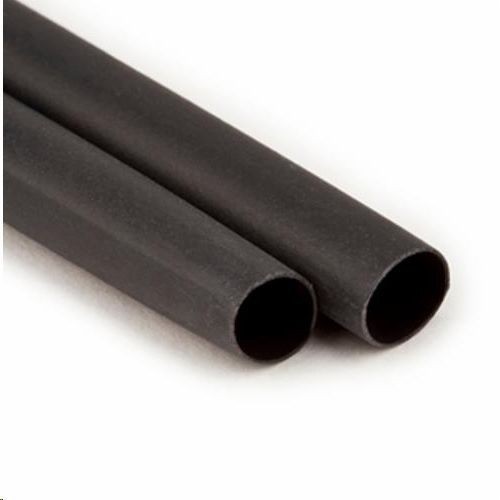

3M™ 054007-08899 Heat Shrink Cable Sleeve, 2 in ID Expanded, 0.65 in ID Recovered, 12 in L, Polyolefin

Selected 3 MITCSN 2000 12
3 MITCSN 2000 12

Documents

Short Description

3M™ Heat Shrinkable Cable Sleeves ITCSN provide reliable performance for electrical splices, connections and terminations, as well as mechanical and environmental protection. This cable sleeve comes in a length of 12 in. 3M™ Heat Shrinkable Heavy-wall Cable Sleeves ITCSN are cross-linked polyolefin. They are highly split resistant and fast shrinking to provide rapid installation. The cut-to-length sleeves come standard with a factory-applied adhesive/sealant. Order any of several packaging choices or look for the counter merchandiser assortment at a 3M authorized distributor. Rated to 1 kV, UL Listed 486 D for 600V. File Number E102356. CSA Rating. When ordering, please specify boxed, bulk, tamper evident bag or merchandising display to assure proper pricing.

Features

  • Adhesive lined
  • Flame retardant
  • UL rated to 600 V, can be used up to 1 kV
  • Heat shrink splice type
  • Fast and easy installation
  • Thick wall top resists puncture and abrasion damage
  • Rugged weather resistant protection
  • Versatile, a minimum number of sizes cover the entire range of applications
  • Shrink ratio as high as 4:1
  • Resists acids and alkalies
  • UV resistant
  • 2400 psi ultimate tensile strength
  • 475% ultimate elongation
  • Primary electrical insulation for solid dielectric wire and cable rated to 1000 V
  • Direct buried or submersible
  • Insulating secondary splices
  • Physical protection and moisture sealing of high voltage air insulated connectors and lugs, such as lug connections to bus bars
  • Relocation of service
  • 1.28 specific gravity

Specification

Length
12 in
Material
Polyolefin
Minimum Order Qty
1
Order Interval
1
Color
Black
Voltage Rating
600 VAC
Shrink Ratio
12/31/1899 3:01:00 AM
Shrink Temperature
250
Temperature Rating
-55 to 100 deg C
Standard & Approvals
CSA LR86335, RoHS 2011/65/EU Compliant, UL File No 486D/E102356
Inner Diameter Recovered
0.65
Inner Diameter Expanded
2
Catalog ID
3-MITCSN-2000-12
