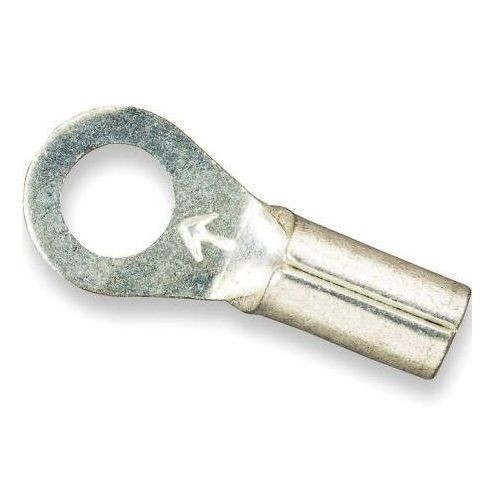

3M™ Scotchlok™ 051128-58698 Non-Insulated Standard Ring Terminal, 6 AWG Conductor, 1.14 in L, Brazed Seam Barrel, Copper
3M™ Scotchlok™ 051128-58698 Non-Insulated Standard Ring Terminal, 6 AWG Conductor, 1.14 in L, Brazed Seam Barrel, Copper
SKU: 3-MM6-14R/SX
Manufacturer Part Number: M6-14R/SX
UPC: 051128586983
Short Description
Features
- Brazed seam barrel ensures a secure fit and offers reliable performance
- Beveled mouth offers easy insertion of wires
- Standard-style ring tongue fits around the stud
- Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
- Crimp termination
- Free hanging (in-line) mounting
- 10 Terminals/bottle
- 100 Terminals/Case
Specification
| Length | 1.14 in |
|---|---|
| Material | Copper |
| Conductor Size | 6 AWG |
| Voltage Rating | 600/1000 VAC |
| Barrel Size | 1/4 in ID x 0.39 in L |
| Barrel Type | Brazed Seam |
| Finish | Tin Plated |
| Standard & Approvals | LR22190 CSA Certified, RoHS 2011/65/EU Compliant, UL E23438 Listed |
| Tongue Type | Ring |
| Tongue Size | 0.47 in W x 0.05 in T |
| Temperature Rating | 347 deg F |
| Stud Size | 1/4 in |
| Specifications | 0.52 in Clearance |
| Color | Blue |
