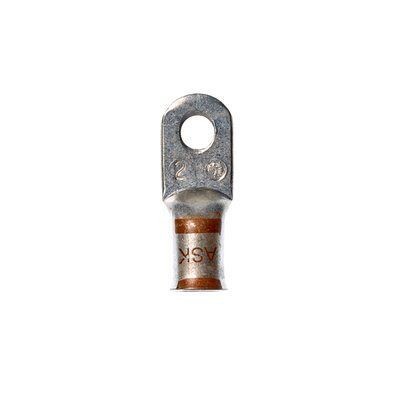

3M™ MC2-38RX Non-Insulated Large Gauge Corrosion-Resistant Compression Lug Terminal, 2 AWG Copper Conductor, Die Code: 3/8 in, 3/8 in Stud, ETP Copper

Selected 71000114433M™ MC2-38RX Non-Insulated Large Gauge Corrosion-Resistant Compression Lug Terminal, 2 AWG Copper Conductor, Die Code: 3/8 in, 3/8 in Stud, ETP Copper
71000114433M™ MC2-38RX Non-Insulated Large Gauge Corrosion-Resistant Compression Lug Terminal, 2 AWG Copper Conductor, Die Code: 3/8 in, 3/8 in Stud, ETP Copper

Documents

Short Description

3M™ Scotchlok™ compression lug ring tongue terminal has a non insulated, seamless barrel and ensures an ideal fit while offering reliable and safe performance. copper construction offers good conductivity and a tin plated finish resists corrosion.

Features

  • Compression lugs are non insulated and seamless
  • The tool used compresses the lug from all sides
  • Crimp connection

Specification

Conductor Size
2 AWG
Voltage Rating
600 VAC
Color
Brown
Conductor Type
Copper
Standard & Approvals
UL Listed
Stud Size
3/8 in
Tongue Type
Ring
Material
ETP Copper
Temperature Rating
347 deg F
Die Code
3/8 in
Barrel Type
Non-Insulated/Seamless
Barrel Size
0.34 in ID
Dimensions
1.69 in L x 0.65 in W x 0.1 in THK
