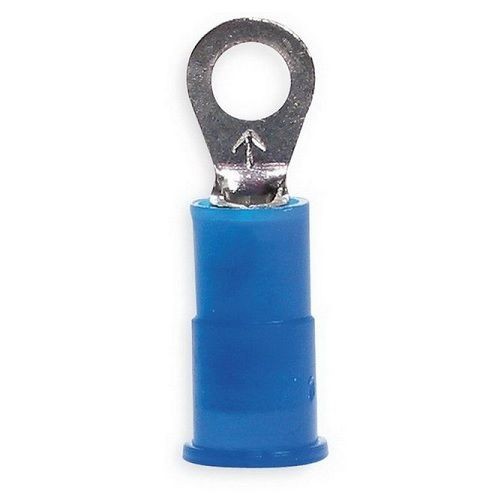

3M™ Scotchlok™ 051128-58749 Insulated Standard Ring Terminal, 16 to 14 AWG Conductor, 0.93 in L, Brazed Seam Barrel

Selected 3M™ Scotchlok™ 051128-58749 Insulated Standard Ring Terminal, 16 to 14 AWG Conductor, 0.93 in L, Brazed Seam Barrel
3M™ Scotchlok™ 051128-58749 Insulated Standard Ring Terminal, 16 to 14 AWG Conductor, 0.93 in L, Brazed Seam Barrel

Short Description

3M™ Scotchlok™ Large Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance

Features

  • Blue vinyl insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Crimp termination
  • Free hanging (in-line) mounting
  • 100 Terminals/Bottle
  • 500 Terminals/Case

Specification

Length
0.93 in
Material
Copper
Conductor Size
16 to 14 AWG
Voltage Rating
600/1000 VAC
Barrel Size
0.09 in ID x 0.25 in L
Barrel Type
Brazed Seam
Color
Blue
Finish
Tin Plated
Specifications
0.17 in Dia Maximum Insulation, 0.33 in Clearance
Standard & Approvals
LR22190 CSA Certified, RoHS 2011/65/EU Compliant, UL E23438 Listed
Stud Size
#10
Temperature Rating
-40 to 221 deg F
Tongue Size
0.31 in W x 0.03 in T
Tongue Type
Ring
