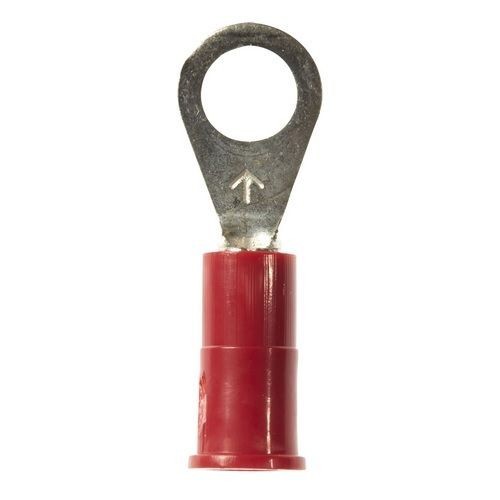

3M™ Scotchlok™ 051128-58732 Insulated Standard Ring Terminal, 22 to 18 AWG Conductor, 0.93 in L, Brazed Seam Barrel
3M™ Scotchlok™ 051128-58732 Insulated Standard Ring Terminal, 22 to 18 AWG Conductor, 0.93 in L, Brazed Seam Barrel
SKU: 3-MMV18-10R/LX
Manufacturer Part Number: MV18-10R/LX
UPC: 051128587324
Documents
Short Description
Features
- Ring tongue terminal has a vinyl insulated, brazed-seam barrel to give you a great fit every time
- Wires can be inserted easily with the funnel-designed, polyvinyl chloride sleeve
- Standard-style ring tongue comes in red and fits around the stud
- Made of electrolytic copper construction to provide good conductivity, as well as corrosion-resistant tin plating
- Crimp termination
- Free hanging (in-line) mounting
- 100 Terminals/Bottle
- 500 Terminals/Case
Specification
| Material | Copper |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Barrel Type | Brazed Seam |
| Color | Red |
| Conductor Size | 22 to 18 AWG |
| Finish | Tin Plated |
| Voltage Rating | 600/1000 VAC |
| Application | For Building Fixtures or Luminaires, Wires and Signs |
| Standard & Approvals | LR22190 CSA Certified, RoHS 2011/65/EU Compliant, UL E23438 Listed |
| Stud Size | #10 |
| Temperature Rating | -40 to 221 deg F |
| Tongue Type | Ring |
| Length | 0.93 in |
| Tongue Size | 0.31 in W x 0.03 in T |
| Specifications | 0.145 in Dia Maximum Insulation, 0.33 in Clearance |
| Catalog ID | 3-MMV18-10R/LX |
| Barrel Size | 0.07 in ID x 0.25 in L |
