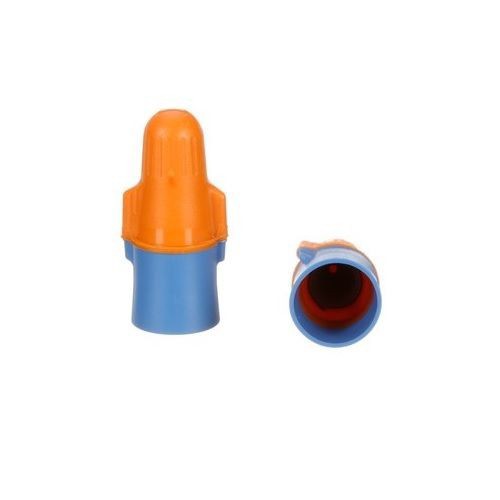

3M™ Performance Plus O/B+ Flame-Retardant Twist-On Wire Connector, Rounded Wing Shell, Live-Action/Square Wire Spring
3M™ Performance Plus O/B+ Flame-Retardant Twist-On Wire Connector, Rounded Wing Shell, Live-Action/Square Wire Spring
SKU: 3-MO/B+JUG
Manufacturer Part Number: O/B+JUG
UPC: 054007431534
Documents
Short Description
Features
- Polypropylene and thermoplastic elastomer insulation
- New design allows easier installation, smooth, fast and easy-on the hands
- Flexible skirts provide safety provides protection against potential shock situations
- Simplifies selection of the right connector for a wide range of wiring jobs, there’s also less inventory to manage, and a better chance you'll have the connector you need to do every job
- Corrosion resistant coating
- A better bite for a better connection, wires feed into the connector more easily, improving the security of the connection and increasing the level of pull-out
- 1000 V for signs, fixtures or luminaires
- (2)22 AWG up to (3) 12 AWG (solid) or (4) 14 AWG wire combinations
- 500/Jug
Specification
| Material | Steel Spring |
|---|---|
| Minimum Order Qty | 500 |
| Order Interval | 500 |
| Catalog ID | 3-MO/B+JUG |
| Color | Orange/Blue |
| Voltage Rating | 600 VAC |
| Shell Style | Rounded Wing |
| Spring Type | Live-Action/Square Wire |
| Standard & Approvals | C22.2 #188-MI983 File No LR15503 CSA Certified, CE Certified, IEC, RoHS Compliant, UL 486C UL File No E23438 Listed |
| Temperature Rating | 221 deg F |
