3M™ RJS-4-10FT Rejacketing Sleeve, For Use With 3M™ Cold Shrink QT II and QT III Silicone Rubber Termination, Rubber, Dark Gray

Selected 71000011263M™ RJS-4-10FT Rejacketing Sleeve, For Use With 3M™ Cold Shrink QT II and QT III Silicone Rubber Termination, Rubber, Dark Gray
71000011263M™ RJS-4-10FT Rejacketing Sleeve, For Use With 3M™ Cold Shrink QT II and QT III Silicone Rubber Termination, Rubber, Dark Gray

Documents

Short Description

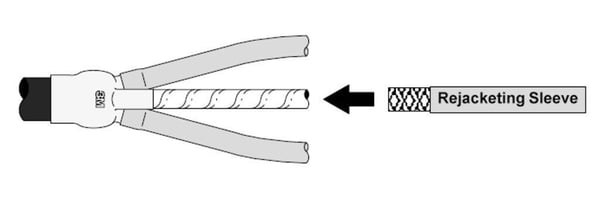

3M™ RJS series rejacketing sleeves are designed so that 3M™ cold shrink QTII and QTIII silicone rubber termination applications can be used on 3/C (three conductor) medium voltage shielded power cables of tape shield, wire shield, armored and non-armored configurations. RJS rejacketing assemblies are A series of silicone rubber insulators incorporating an inner expandable polyester braid designed to reduce sliding friction and deliver the insulator onto the cable. Rejacketing sleeves are designed to protect the phase legs (core) of 3/C shielded power cable from exposure to moisture, corrosion, ozone, UV radiation, physical contact and other hazards that are associated with termination operating environments. Rejacketing sleeves are designed to be used in conjunction with 3M™ cold shrink breakout boots and silicone rubber terminations.

Features

  • Versatile installs quickly and accommodates a wide range of cable sizes
  • Simple hand application no need for special installation tool
  • No torches or heat source required
  • Excellent-resistance to ozone and UV radiation
  • Good solvent-resistance compatible with industry approved cable cleaners
  • Excellent thermal stability
  • High dry and wet insulation-resistance
  • Excellent shelf life
  • Easy to adjust sleeve length adapts to variable equipment connection and mounting requirements
  • Used to protect shielded phase legs (cores) of 3/C medium voltage (35 kV and less) power cables after the jacket has been removed in preparation for terminating
  • Accommodate cable sizes ranging from 8 AWG (8 sq-mm) at 3.3 kV, 750 kcmil (325 sq-mm) at 35 kV
  • Available in 6 sizes to cover cable metallic shield ranging from 0.43 to 1.91 in Dia
  • RJS series sleeve assemblies can be field tested using normal cable testing procedures
  • Rejacketing sleeves are designed to protect the phase legs (core) of 3/C shielded power cable from exposure to moisture, corrosion, ozone, UV radiation, physical contact and other hazards that are associated with termination operating environment
  • Cold shrink QT-III and QT-III silicone rubber termination can be used on 3/C (3-conductor) medium voltage shielded power cables of tape shield, wire shield, armored and non-armored configuration
  • 10 ft L linear

Specification

Material
Rubber
Minimum Order Qty
1
Order Interval
1
Color
Dark Gray
Temperature Rating
180 deg C
Suitable For Use With
3M™ Cold Shrink QT II and QT III Silicone Rubber Termination
Standard & Approvals
IEEE 48 1996, VDE 0278
Specifications
1.02 to 1.28 in Dia Metallic Shield Range, 3.3 to 8 kV Voltage Range
Dimensions
10 ft L
Catalog ID
3-MRJS-4-10FT
