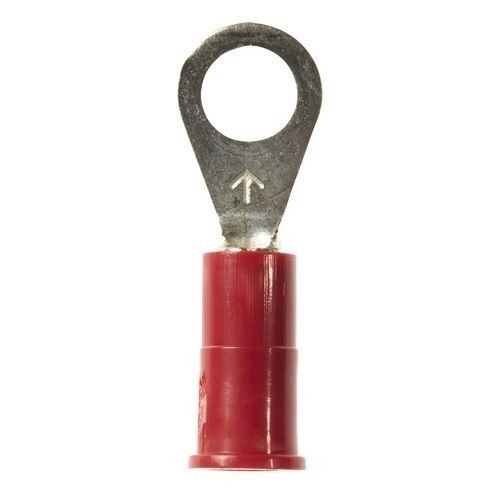

3M™ Highland™ 051128-60043 Insulated Standard Ring Terminal, 22 to 18 AWG Conductor, 0.93 in L, Butted Seam Barrel, Red
3M™ Highland™ 051128-60043 Insulated Standard Ring Terminal, 22 to 18 AWG Conductor, 0.93 in L, Butted Seam Barrel, Red
SKU: 3-MRV18-10Q
Manufacturer Part Number: RV18-10Q
UPC: 051128600436
Documents
Short Description
Features
- Red vinyl insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
- Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- Standard-style ring tongue fits around the stud
- Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
- Crimp termination
- Free hanging (in-line) mounting
- 25 Terminals/Bag
Specification
| Length | 0.93 in |
|---|---|
| Material | Copper |
| Conductor Size | 22 to 18 AWG |
| Voltage Rating | 600/1000 VAC |
| Barrel Size | 1/4 in ID x 1/4 in L |
| Barrel Type | Butted Seam |
| Color | Red |
| Finish | Tin Plated |
| Specifications | 0.145 in Dia Maximum Insulation, 0.33 in Clearance |
| Standard & Approvals | LR22190 CSA Certified, RoHS 2011/65/EU Compliant, UL E23438 Listed |
| Stud Size | #10 |
| Temperature Rating | -40 to 221 deg F |
| Tongue Size | 0.31 in W x 0.03 in T |
| Tongue Type | Ring |
