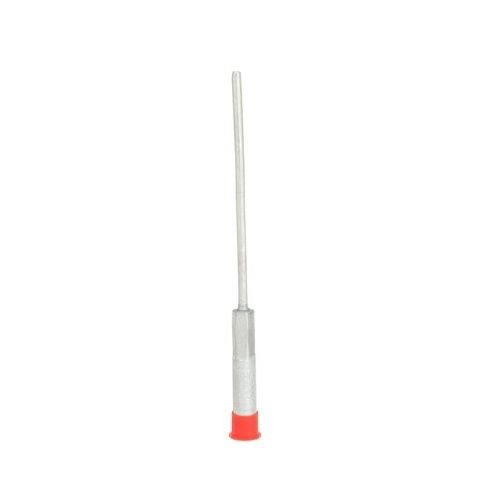

3M™ 054007-14655 Stem Connector, 35 kV, 1 to 2 AWG Conductor, 0.25 in Dia x 6 in L, Aluminum

Selected SC00013M™ 054007-14655 Stem Connector, 35 kV, 1 to 2 AWG Conductor, 0.25 in Dia x 6 in L, Aluminum
SC00013M™ 054007-14655 Stem Connector, 35 kV, 1 to 2 AWG Conductor, 0.25 in Dia x 6 in L, Aluminum

Short Description

3M™ Stem Connectors SC Series feature a tin-plated aluminum barrel for installations on either copper or aluminum cable conductors and are used when connecting a riser cable to an overhead line. The SC series connectors are also used when terminating an insulated power cable with 3M terminations. SC series connectors are provided with a factory crimped and sealed, tin-plated copper stem for aerial line connection. A suggested accessory to the stem connector is the CP-1 Parallel Clamp that enables the connection of the stem connector to the overhead jumper wire.

Features

  • Standard barrel
  • Compression lug
  • 1 AWG /1/0 AWG (Solid)/2 AWG/1 AWG (Stranded) compression lug

Specification

Material
Aluminum
Conductor Size
1 to 2 AWG
Dimensions
7.9 mm W
Voltage Rating
35 kV
Application
For use with aluminum or copper conductors
Conductor Type
Solid/Standed
Standard & Approvals
RoHS Compliant
Stem Diameter
0.25 in
Stem Length
6 in
