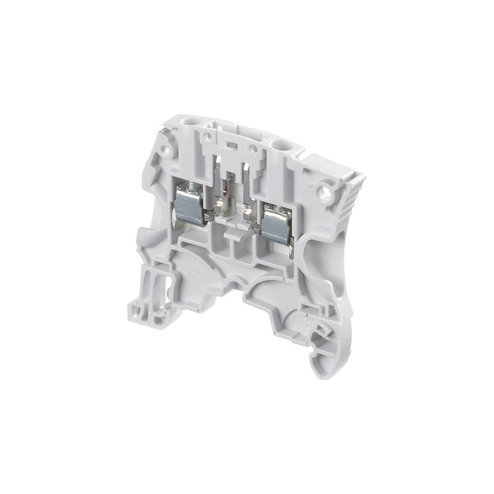

ABB 1SNK505313R0000 SNK Disconnect Terminal Block With Plug, 400 V, 18 A, 10 AWG Wire, DIN Rail Mount
ABB 1SNK505313R0000 SNK Disconnect Terminal Block With Plug, 400 V, 18 A, 10 AWG Wire, DIN Rail Mount
SKU: ABB1SNK505313R0000
Manufacturer Part Number: 1SNK505313R0000
UPC: 804325488204
Features
- Save time with our screwless component holder plug
Specification
| Mounting Type | DIN Rail |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 18 A |
| Color | Gray |
| Voltage Rating | 400 V |
| Standard & Approvals | IEC/EN 60079-7, IEC 60068-2-6, IEC 60529, IEC 60947-1, EN 60529, IEC 60715, UL 1059, CSA C22.2, BUREAU VERITAS Approved, CB Certified, cUL Listed, CE Certified, DNV Approved, EAC Certified, RINA Approved, RMRS Approved, UL 94 V-0 Flammability Rating |
| Catalog ID | ABB1SNK505313R0000 |
| Wire Strip Length | 10.5 mm |
| Wire Size | 10 AWG |
| Terminal Type | Screw Clamp |
| Temperature Rating | -67 to 230 deg F |
| Spacing | 5.2 mm |
| Series | SNK |
| Dimensions | 47.3 mm L x 5.2 mm W x 53 mm H |
| Material | Polyamide |
