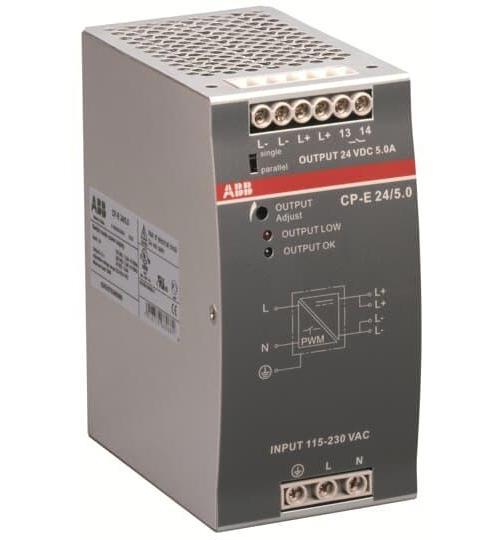

ABB 1SVR427034R0000 CP-E Switch Mode Power Supply, 90 to 132/180 to 264 VAC/210 to 375 VDC Input, 24 VDC Output, 120 W Power Rating, 5 A, DIN Rail Mount
ABB 1SVR427034R0000 CP-E Switch Mode Power Supply, 90 to 132/180 to 264 VAC/210 to 375 VDC Input, 24 VDC Output, 120 W Power Rating, 5 A, DIN Rail Mount
SKU: ABB1SVR427034R0000
Manufacturer Part Number: 1SVR427034R0000
EAN: 4016779669689
UPC: 804325456265
Documents
Short Description
Features
- Integrated input fuse
- 140 W typical power consumption
- Power reserve up to 50%
- Ambient temperature range during operation -35 to 70 deg C
- Low power dissipation and low heating
- Signaling contact 13-14 (solid-state) for output voltage OK
- 100% duty time
- Typical efficiency of 86%
- Free convection cooling (no forced cooling with ventilators)
- Open circuit, overload and short circuit stable
- For applications that require cost effective 24 VDC at 5 A power supply
- LED's for status indication
- Output voltage adjustable via front face rotary potentiometer output adjust
- 24 A 115 VAC 48 A 230 VAC inrush current limiting
Specification
| Type | Switch Mode |
|---|---|
| Case Material | Plastic |
| Width | 2.49 in |
| Mounting Type | DIN Rail |
| Output Voltage | 24 VDC |
| Height | 4.87 in |
| Amperage Rating | 5 A |
| Frequency Rating | 47 to 63 Hz |
| Power Rating | 120 W |
| Series | CP-E |
| Depth | 4.87 in |
| Input Voltage | 90 to 132/180 to 264 VAC/210 to 375 VDC |
