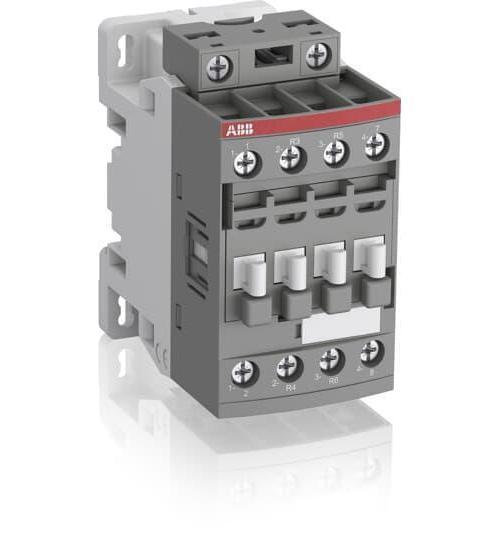

ABB AF16-22-00-14 AC/DC Operated IEC Contactor, 250 to 500 V AC/DC V Coil, 30 A, 2NO-2NC Contact, 4 Poles
ABB AF16-22-00-14 AC/DC Operated IEC Contactor, 250 to 500 V AC/DC V Coil, 30 A, 2NO-2NC Contact, 4 Poles
SKU: ABBAF16-22-00-14
Manufacturer Part Number: AF16-22-00-14
UPC: 804325539203
Documents
Features
- Control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and DC), only 4 control voltages ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Built-in surge suppression
- 4 kW at 220 to 230 to 240 V, 7.5 kW at 380 to 400 V, 9 kW at 415/440/500/690 V
- 30 A at 600 V UL/CSA, 1-phase 690 V IEC
Specification
| Type | AC/DC Operated |
|---|---|
| Terminal Type | Screw |
| Frequency Rating | 50/60 Hz |
| Contact Configuration | 2NO-2NC |
| Enclosure Type | IP20 |
| Maximum Load Current | 30 A |
| Connection Type | Cable Clamp |
| Dimensions | 86 mm H x 45 mm W x 77 mm D |
| Coil Voltage | 250 to 500 V AC/DC |
| Coil Power Rating | 4/7.5/9 kW |
| Operating Cycles | 10000000 Cycles |
| Operating Temperature | -60 to 80 deg C |
| Number Of Poles | 4 |
